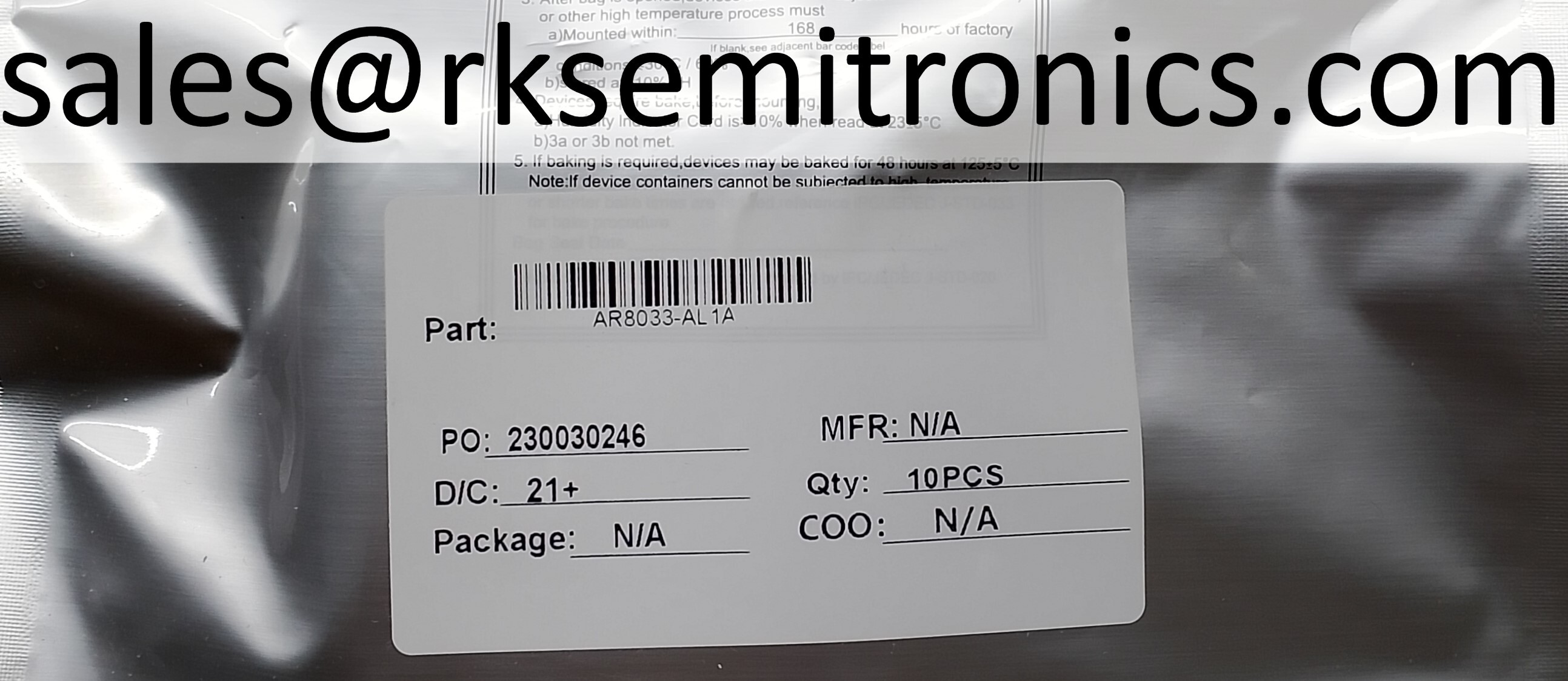

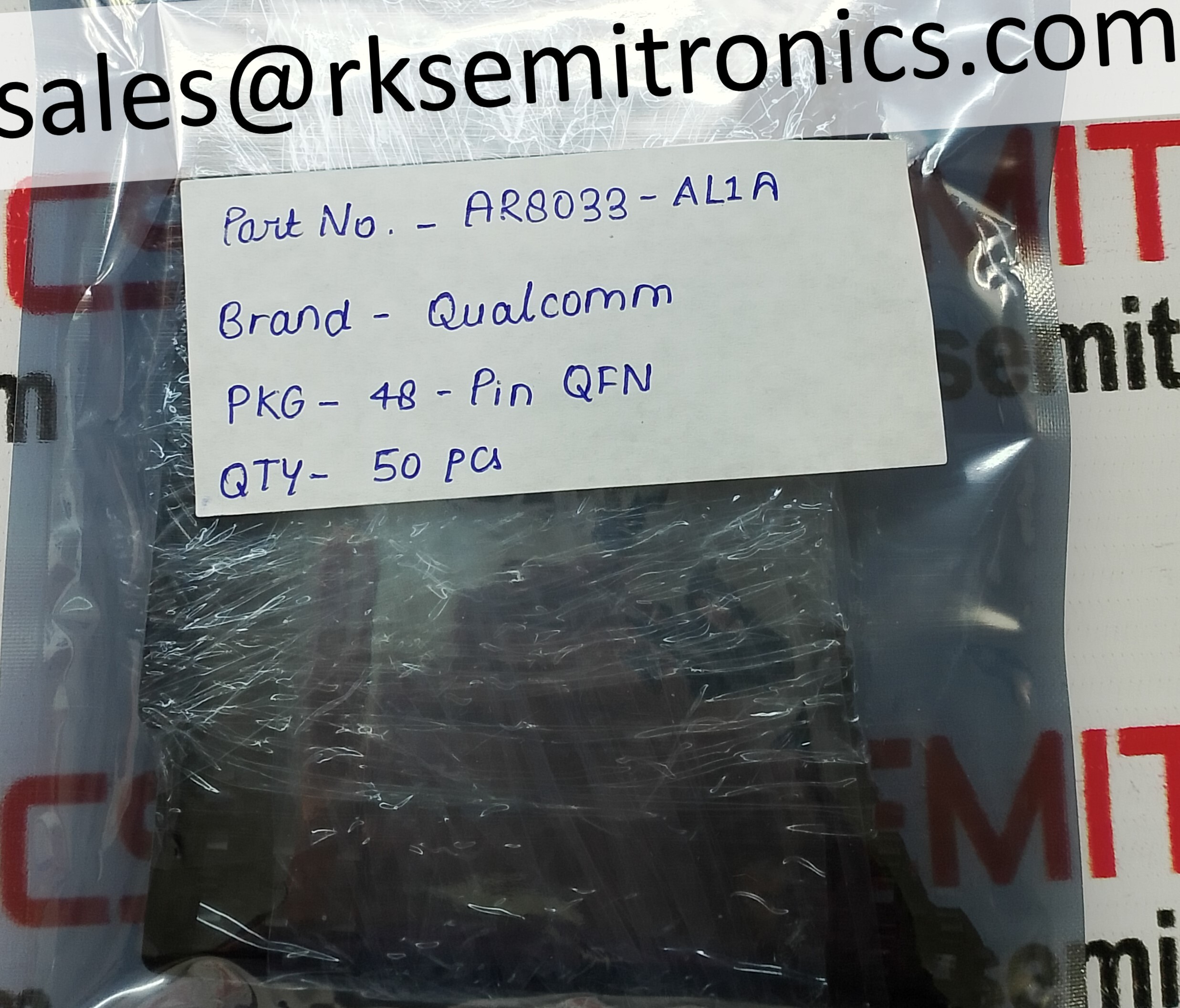

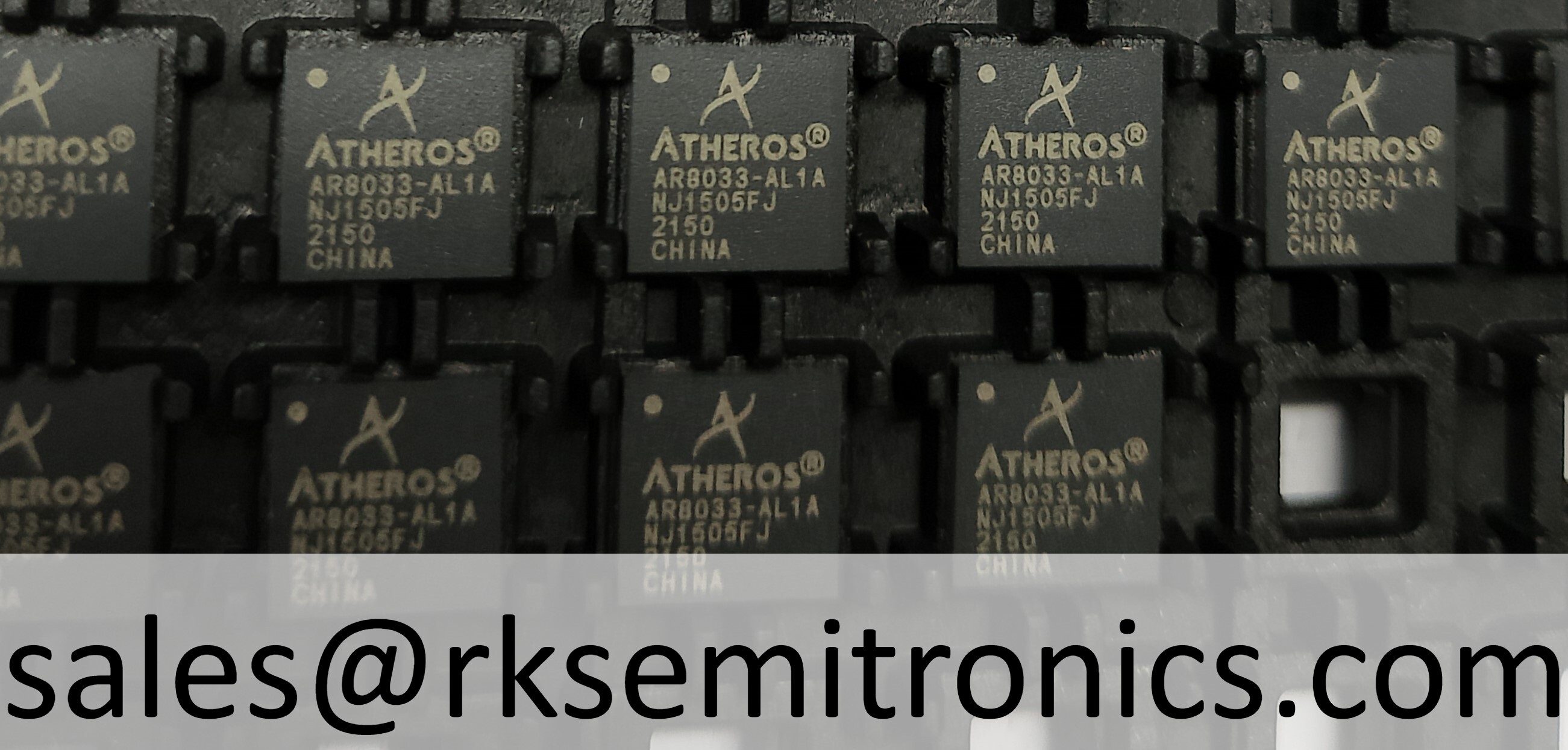

AR8033-AL1A Ethernet TXRX Single Chip

Name: AR8033-AL1A Ethernet TXRX Single Chip
Brand: RKSEMITRONICS INDIA PRIVATE LIMITED
Price: 225 INR
Availability: InStock

Price 225 INR/ Piece

Get a Price/Quote

MOQ : 25 Pieces

AR8033-AL1A Ethernet TXRX Single Chip Specification

Operating Temperature
-40C to +85C

Power Supply
1.2V, 2.5V, 3.3V

Power Source
External DC supply

Usage
Networking, Ethernet Communication

Output
Digital Data to MAC Interface (RGMII/SGMII)

Components
Single-Chip PHY Transceiver

Features
Low Power Consumption, Integrated Termination, IEEE 802.3 Compliant, Wake-on-LAN Support, Cable Diagnostics

Interface
RGMII, SGMII, MDI/MDIX, SERDES

Input
1000BASE-T, 100BASE-TX, 10BASE-T Ethernet Signals

Product Type
Ethernet Physical Layer Transceiver (PHY)

Application
Consumer Electronics, Routers, Switches, Gateways, Set-top Boxes, IP Cameras

Rated Voltage
3.3V (typical)

Supply Voltage
3.3V/2.5V/1.2V (multi-supply)

Size
5 mm x 5 mm

Dimension (L*W*H)
5 mm x 5 mm x 1 mm

Function
Ethernet Transceiver/TXRX, Single Chip Solution

Color
Black

Weight
Approx. 0.03g (per IC)

Current Rating
45 mA (typical operating)

Thickness
Approx. 1 mm

Capacity
Supports 10/100/1000 Mbps Ethernet

Frequency
25 MHz Reference Clock

RoHS Compliance
Yes

Jumbo Frame Support
Yes, up to 9KB

Model
AR8033-AL1A

Package Type
QFN (Quad Flat No-lead)

ESD Protection
2 kV Human Body Model

Downshift/Downspeed Capability
Supported

Cable Diagnostics
Supported

Built-In Self Test
Supported (BIST)

MTBF
Highly Reliable, Data On Request

Integrated Termination Resistances
Yes

Lead Count
40 pins

Auto MDI/MDIX
Supported

Power Management
Advanced low power modes

AR8033-AL1A Ethernet TXRX Single Chip Trade Information

Minimum Order Quantity
25 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About AR8033-AL1A Ethernet TXRX Single Chip

Product Name
AR8033-AL1A
Manufacturer
Qualcomm Atheros
Interface
RGMII
Data Rate
10/100/1000 Mbps
Supply Voltage
3.3V
Package / Case
QFN-48
Operating Temperature
-40C to +85C

Advanced Features for Next-Generation Networking

The AR8033-AL1A offers advanced functionality in a single chip-integrated termination resistors, built-in self-test (BIST), cable diagnostics, and up to 9KB jumbo frame support. Its downshift and downspeed capabilities, along with auto MDI/MDIX, ensure broad compatibility and reliable connectivity in a diverse range of networking applications. This makes the AR8033-AL1A ideal for high-performance consumer and professional networking products.

Compact, Energy-Efficient Design

Engineered for space-constrained devices, the 5x5x1 mm QFN package and low power consumption (45 mA typical) make the AR8033-AL1A perfect for integration into tight spaces. It utilizes multiple power supply voltages (1.2V, 2.5V, 3.3V), supports advanced power modes, and is RoHS-compliant for environmentally friendly operation.

FAQ's of AR8033-AL1A Ethernet TXRX Single Chip:

Q: How does the AR8033-AL1A improve network reliability in consumer electronics?

A: The AR8033-AL1A features built-in self-test (BIST), advanced cable diagnostics, and integrated termination resistances, which enhance network reliability by enabling proactive troubleshooting, signal integrity, and stable operation over a wide temperature range (-40C to +85C).

Q: What networking interfaces and Ethernet speeds does the AR8033-AL1A support?

A: This transceiver chip is compatible with RGMII, SGMII, and MDI/MDIX interfaces, supporting 10/100/1000 Mbps Ethernet (1000BASE-T, 100BASE-TX, and 10BASE-T). It delivers digital data output directly to the MAC interface, accommodating diverse application needs.

Q: Where is the AR8033-AL1A typically used?

A: The AR8033-AL1A is widely used in networking devices such as routers, switches, gateways, IP cameras, set-top boxes, and other consumer electronics that require dependable and high-speed wired Ethernet connectivity.

Q: What process is required to enable jumbo frame support on the AR8033-AL1A?

A: Enabling jumbo frame support (up to 9KB) typically involves configuring the MAC or network device to transmit and receive larger Ethernet frames, ensuring the AR8033-AL1A can recognize and handle them for improved data throughput.

Q: When should auto MDI/MDIX and downshift features be utilized?

A: Auto MDI/MDIX should be used when connecting the device to various network cables without worrying about straight-through or crossover compatibility. Downshift/Downspeed is beneficial when cable quality is suboptimal, allowing the device to maintain stable connectivity at lower speeds.

Q: What are the main benefits of the AR8033-AL1A's power management features?

A: Its advanced power modes and low typical operating current (45 mA) reduce energy consumption, extend device operational life, and support features like Wake-on-LAN for intelligent, power-efficient network operation.
