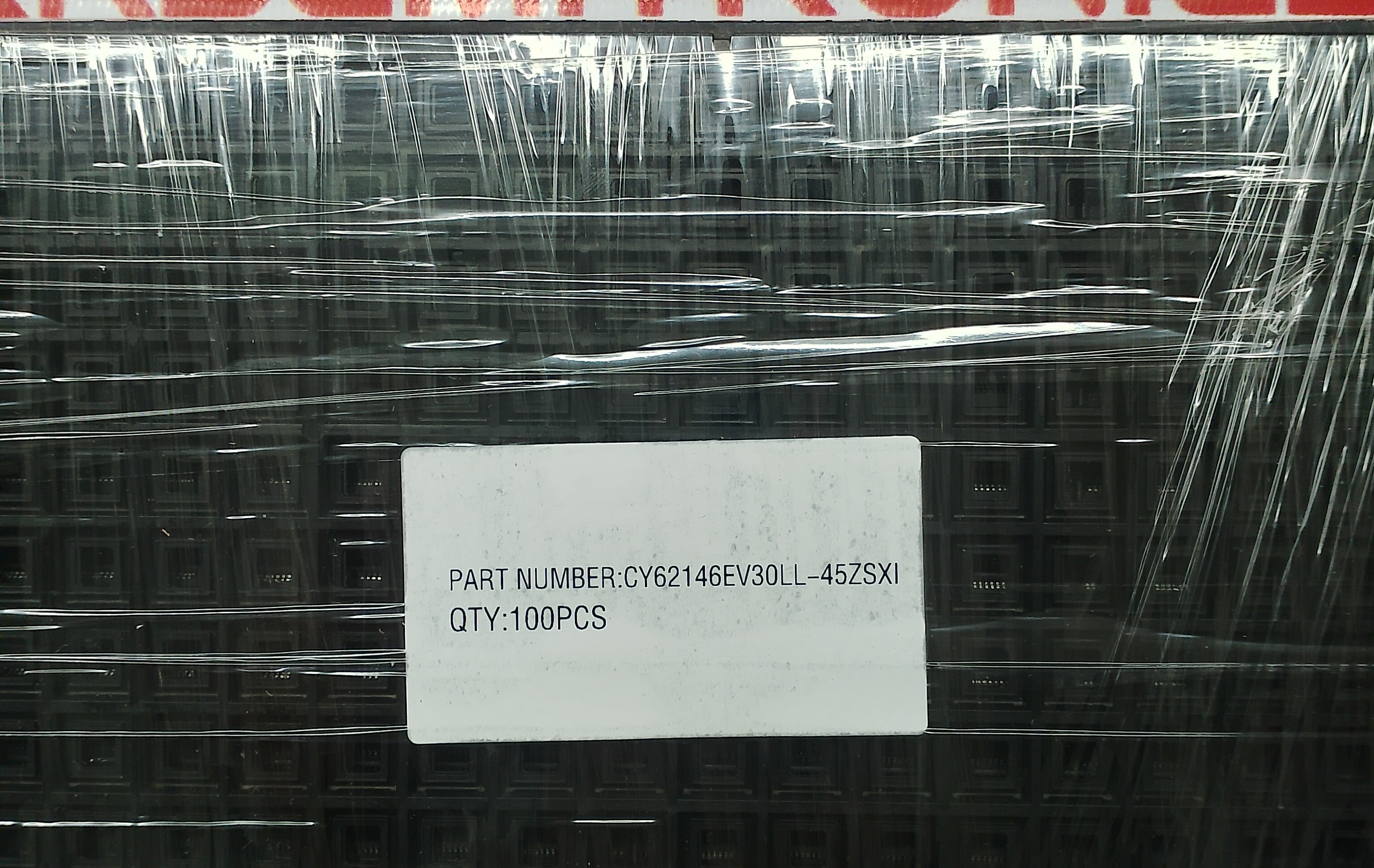

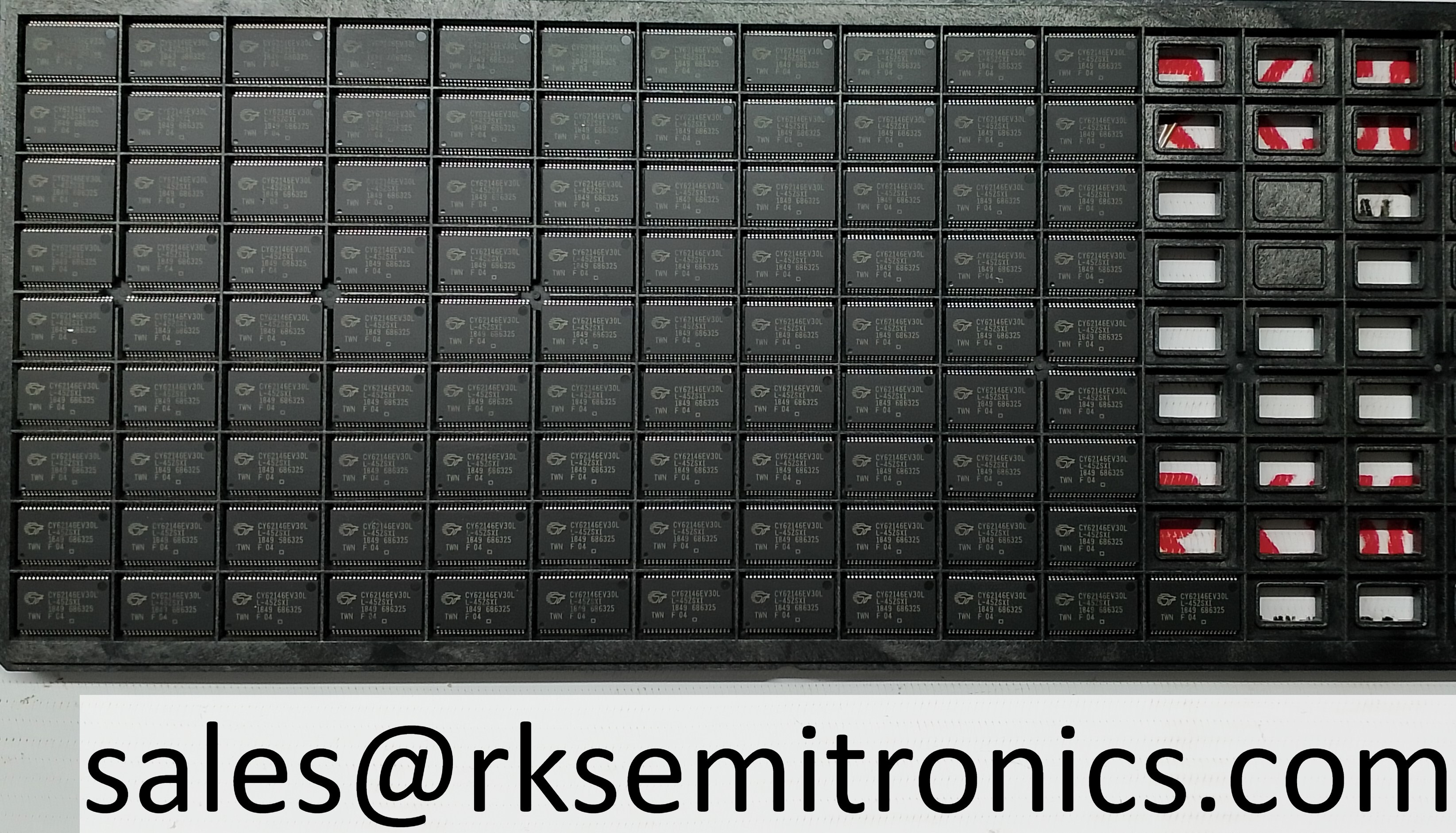

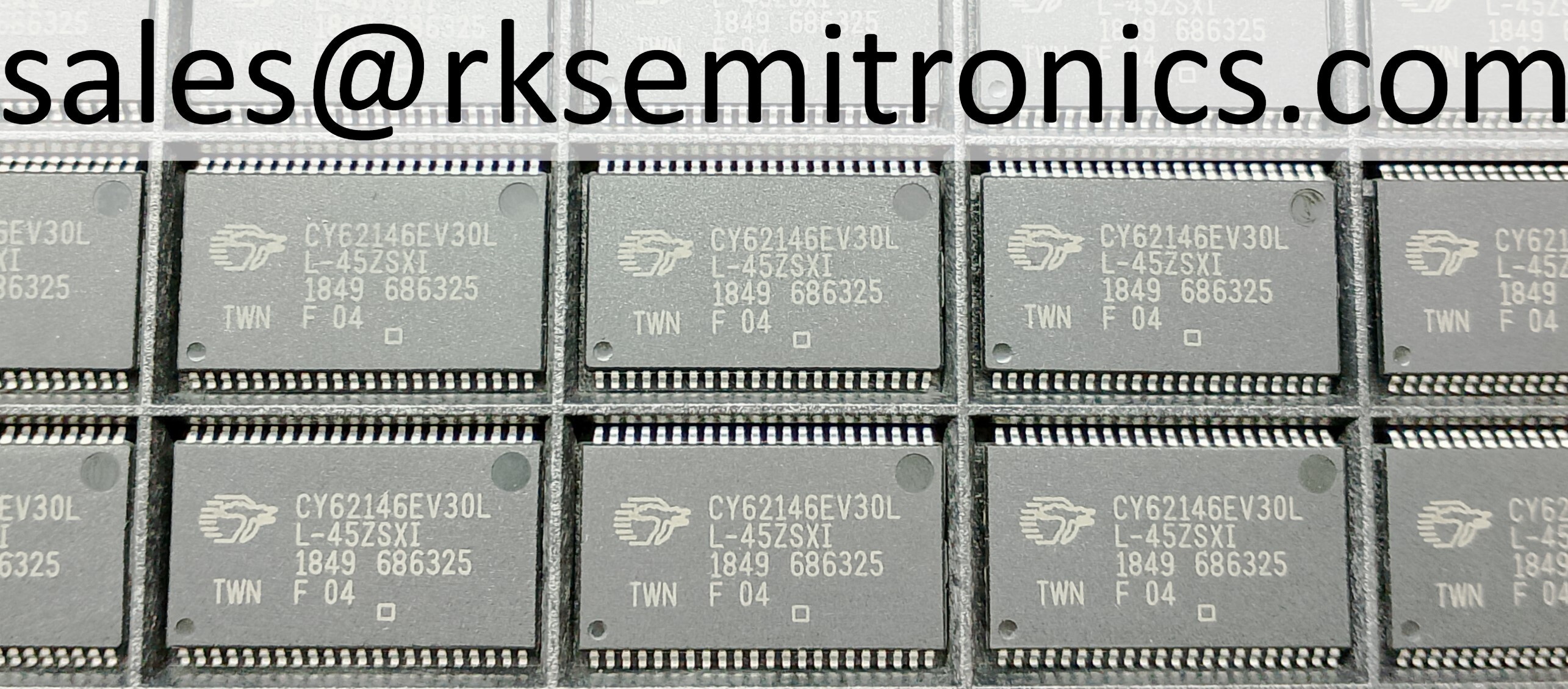

CY62146EV30LL-45ZSXI IC

Name: CY62146EV30LL-45ZSXI IC
Brand: RKSEMITRONICS INDIA PRIVATE LIMITED
Price: 305 INR
Availability: InStock

Price 305 INR/ Piece

Get a Price/Quote

MOQ : 20 Pieces

CY62146EV30LL-45ZSXI IC Specification

Components
CMOS SRAM chip

Usage
Data storage for electronic equipment

Input
Digital address/data

Thermal Conductivity
Standard for IC packages

Features
Low standby current, industrial temperature range

Power Source
External, regulated supply

Interface
Parallel

Output
Digital data

Power Supply
3.0V (2.2V to 3.6V range)

Operating Temperature
-40C to +85C

Response Time
45ns access time

Product Type
Static RAM Memory IC

Application
Consumer electronics, industrial control, communication infrastructure

Rated Voltage
3.0V

Supply Voltage
2.2V to 3.6V

Size
44-pin TSOP II package

Dimension (L*W*H)
18.4mm x 12mm x 1.2mm (approx.)

Function
High-speed CMOS Static RAM (SRAM) memory IC

Color
Black / Grey

Weight
Approx. 0.8g (per component)

Capacity
256 K x 16 bits (4 Mbit)

Thickness
Standard IC thickness

Current Rating
70mA maximum active current

Frequency
N/A (asynchronous operation)

Brand/Manufacturer
Cypress Semiconductor

Pin Count
44

Mounting Type
Surface Mount

Organization
256K x 16

Cycle Time
45ns (minimum)

RoHS Compliant
Yes

ECC Support
No

Standby Current (Typ)
2A (at 3V)

Lead Free Status
Lead Free

Package/Case
44-TSOP II

Organization Part Number
CY62146EV30LL-45ZSXI

Access Time
45ns

Data Retention Voltage
1.5V minimum

CY62146EV30LL-45ZSXI IC Trade Information

Minimum Order Quantity
20 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About CY62146EV30LL-45ZSXI IC

Manufacturer: Cypress Semiconductor Product Category: SRAM RoHS: Details Memory Size: 4 Mbit Organisation: 256 k x 16 Access Time: 45 ns Maximum Clock Frequency: - Interface Type: Parallel Supply Voltage - Max: 3.6 V Supply Voltage - Min: 2.2 V Supply Current - Max: 20 mA Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 85 C Mounting Style: SMD/SMT Package/Case: TSOP-44 Packaging: Tray Brand: Cypress Semiconductor Memory Type: Volatile Moisture Sensitive: Yes Number of Ports: 1 Product Type: SRAM Series: CY62146EV30LL

Versatile Data Storage Solution

Designed for a range of devices, the CY62146EV30LL-45ZSXI offers fast, reliable data storage in a compact form factor. Its wide voltage range (2.2V-3.6V) and operating temperature (-40C to +85C) allow seamless use in industrial, consumer, and communication applications, providing adaptability for diverse projects.

Energy Efficiency and Reliability

This SRAM IC features a low typical standby current (2A at 3V supply) and a maximum active current of only 70mA, helping conserve energy in battery-powered and high-efficiency systems. Its data retention voltage (minimum 1.5V) ensures stored data is preserved even during brief power interruptions.

Easy Integration and High Compatibility

The standard 44-pin TSOP II package facilitates easy mounting on a variety of PCB designs, making integration simple for OEMs and system designers. Its parallel interface and digital input/output capability enable fast communication with microcontrollers and processors.

FAQ's of CY62146EV30LL-45ZSXI IC:

Q: How is the CY62146EV30LL-45ZSXI typically used in electronic systems?

A: The CY62146EV30LL-45ZSXI is widely used as high-speed, non-volatile data storage in consumer electronics, industrial control systems, and telecommunications infrastructure. It enables quick access to frequently used data and enhances overall system performance.

Q: What are the benefits of choosing this SRAM IC for my application?

A: This SRAM IC offers fast access times (45ns), low standby current for power efficiency, broad operating temperature range, and robust data retention. Its RoHS compliance and lead-free status further make it an environmentally responsible choice.

Q: When should I select this component over other memory options?

A: Choose the CY62146EV30LL-45ZSXI when your design requires fast, reliable SRAM, with moderate capacity (4 Mbit) and low power consumption, especially in environments with temperature extremes or where surface mounting is preferred.

Q: Where can this IC be installed within a system?

A: The IC is designed for surface mounting on printed circuit boards (PCBs) and is suitable for locations where a 44-pin TSOP II footprint is available, such as main boards or memory expansion slots in industrial or consumer devices.

Q: What is the process to design in the CY62146EV30LL-45ZSXI?

A: Integration involves connecting the parallel digital address and data lines to your processor or microcontroller, ensuring the power supply stays within 2.2V-3.6V, and observing correct mounting with the TSOP II layout. Proper power regulation and adherence to the specified timing parameters are important.

Q: How does the low standby current feature benefit my design?

A: Low standby current (2A typical) significantly reduces unnecessary power consumption when the SRAM is not active, extending battery life and improving the energy efficiency of your product, essential for portable or always-on devices.
