Limit Switch

• Color
• Red (NC), White

• Contact Resistance
• 50 m Max. Ohm ()

• Insulation Resistance
• 100 M Min.

• Max. Voltage
• 250 VAC Volt (V)

• Operating Temperature
• -20C to 70C Celsius (oC)

• Rated Voltage
• 250 V Volt (V)

• Automation Grade
• Industrial

• Circuit Type
• SPDT

• Color
• Gray & Black

• Contact Resistance
• 25 m max.

• Current Rating
• 10 A at 250 V AC

• Finish Type
• Matte

• Insulation Resistance
• 100 M min. (500 VDC)

• Material
• Die-cast aluminum housing, resin actuator

• Max. Current
• 10 A

• Max. Voltage
• 300 V AC 50/60 Hz

• Mechanical Life
• 10,000,000 operations min.

• Mounting Type
• Panel/Surface Mount

• No Of Poles
• 1 Pole

• Number of Module
• 1

• Operating Temperature
• -10C to +80C

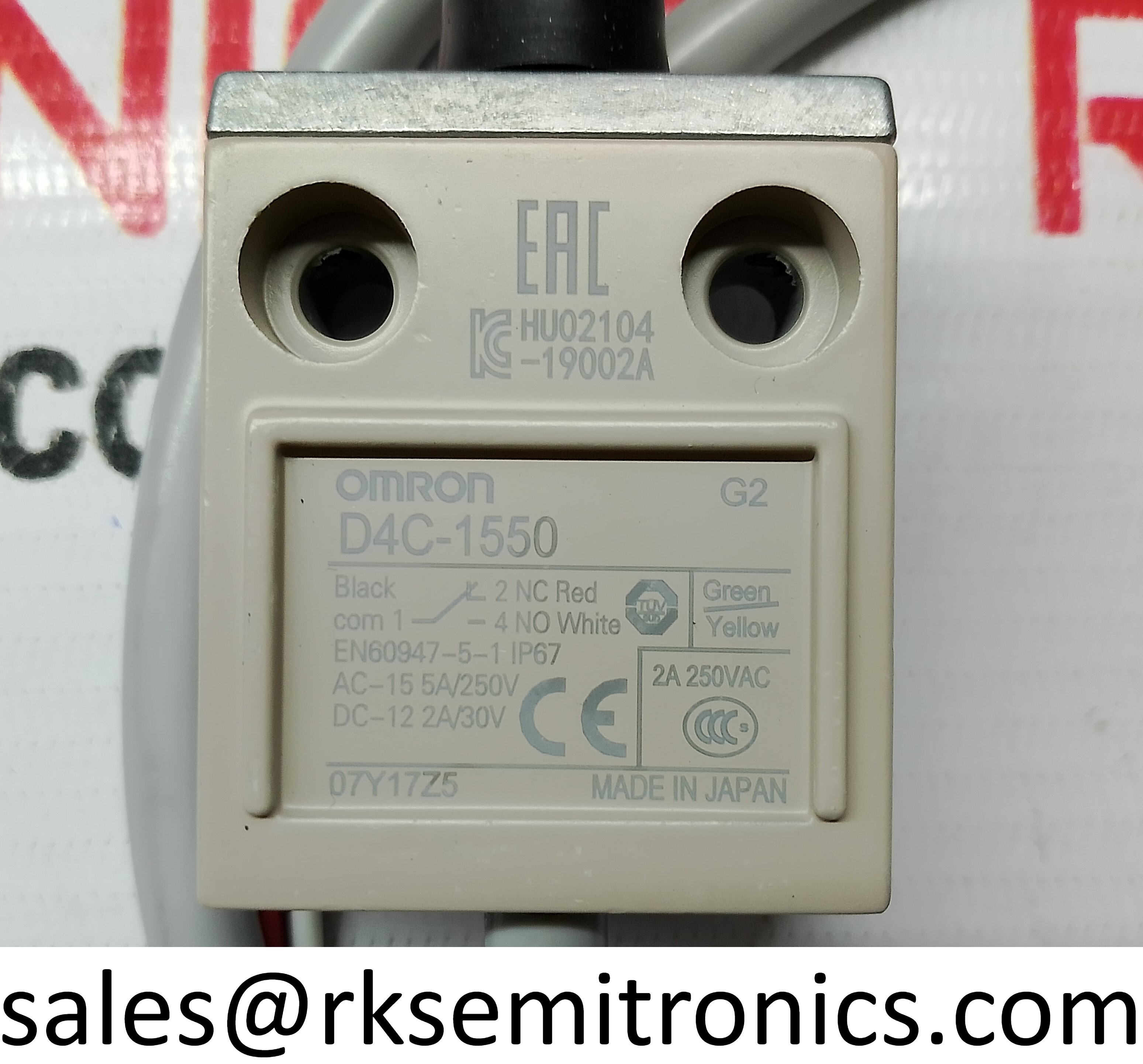

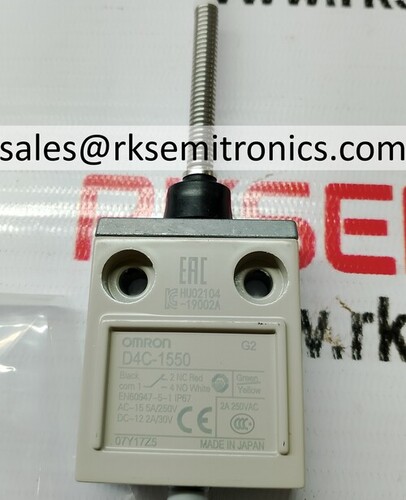

• Product Type
• Compact Limit Switch

• Protection Level
• IP67

• Rated Voltage
• 300 V AC

• Response Time
• 15 ms max.

• Size
• 30.5 mm x 16 mm x 44 mm (approx)

• Stoke
• 1 mm

• Temperature Range
• -10C to +80C

• Weight
• Approx. 50 g
