ADXL213AE Accelerometer

Name: ADXL213AE Accelerometer
Brand: RKSEMITRONICS INDIA PRIVATE LIMITED
Price: 2300 INR
Availability: InStock

Price 2300 INR/ Piece

Get a Price/Quote

MOQ : 3 Pieces

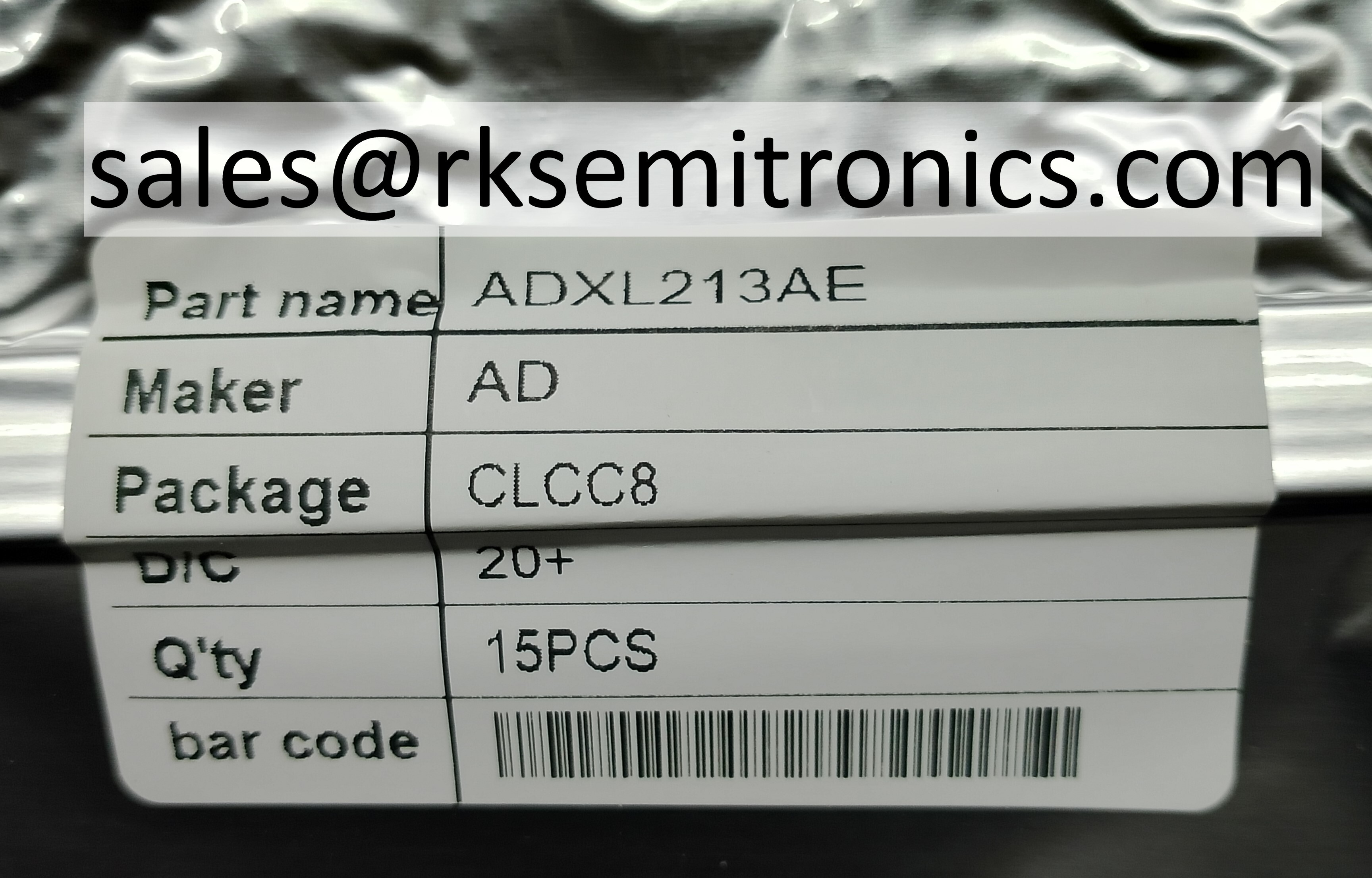

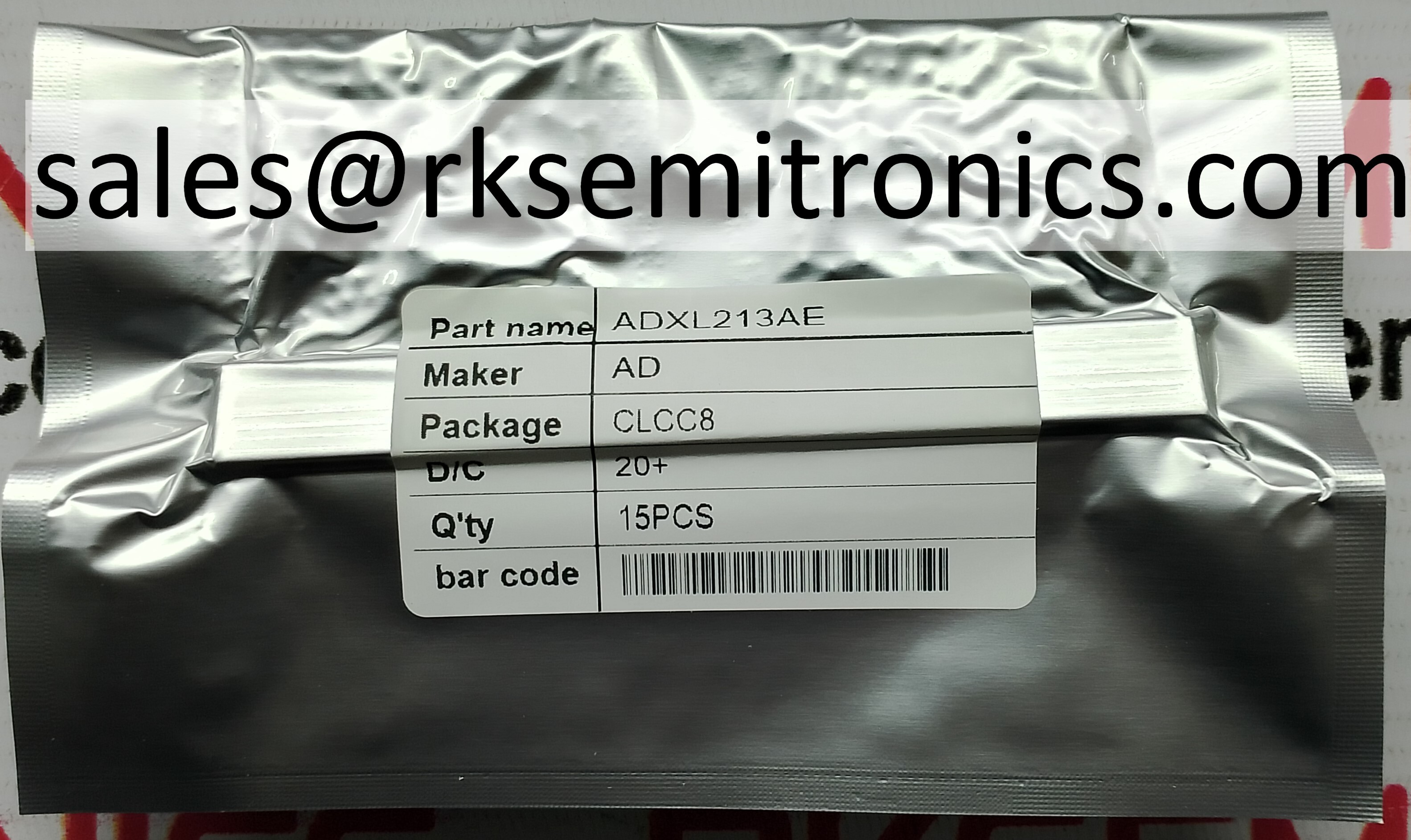

ADXL213AE Accelerometer Specification

Maker
Analog Devices (AD)

Part Number
ADXL213AE

Number of Axes
2

Lead Finish
RoHS compliant (typically lead-free)

Package
CLCC8

Quantity per Reel
15PCS

ADXL213AE Accelerometer Trade Information

Minimum Order Quantity
3 Pieces

Delivery Time
10 Days

Main Domestic Market
All India

About ADXL213AE Accelerometer

Manufacturer: Analog Devices Inc. Product Category: Accelerometers RoHS: Details Sensor Type: 2-axis Sensing Axis: X, Y Acceleration: 1.2 g Sensitivity: - Output Type: Digital Interface Type: - Resolution: - Supply Voltage - Max: 6 V Supply Voltage - Min: 3 V Operating Supply Current: 700 nA Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 85 C Mounting Style: SMD/SMT Packaging: Tube Brand: Analog Devices Height: 5 mm Length: 5 mm Operating Supply Voltage: 5 V Product Type: Accelerometers Series: ADXL213 95 Subcategory: Sensors Type: Dual Axis Accelerometer Width: 2 mm Unit Weight: 334 mg

Precision Acceleration Sensing

The ADXL213AE delivers accurate measurement of motion or tilt in two axes, making it ideal for sophisticated detection systems in various industries. Its PWM output enables a direct digital interface, ensuring seamless integration with modern electronic systems, whether in robotics, tilt alarms, or automotive systems.

Versatile and Reliable Design

Built to operate from -40C to +85C, the ADXL213AE excels in tough environments. Surface-mount compatibility allows for streamlined assembly, and low power consumption ensures efficiency in portable devices. Its RoHS-compliant finish reflects commitment to environmental responsibility.

FAQ's of ADXL213AE Accelerometer:

Q: How does the ADXL213AE accelerometer output its measurements?

A: The ADXL213AE uses Pulse Width Modulated (PWM) digital signals to represent acceleration values along both axes. The duty cycle of the PWM output is proportional to the measured acceleration, enabling straightforward interfacing with microcontroller-based systems.

Q: What is the recommended operating voltage for the ADXL213AE and why is this range important?

A: The recommended supply voltage for the ADXL213AE is between 3V and 6V. This range ensures stable sensor operation and helps maintain low power consumption, making the device compatible with a wide array of electronic designs.

Q: Where is the ADXL213AE commonly used, and what benefits does it offer in these applications?

A: The ADXL213AE is commonly used in industrial, automotive, and consumer electronics applications for motion and tilt detection. Its key benefits include dual-axis output, high stability, and low power consumption, which enhance reliability and efficiency in demanding use cases.

Q: When is it advisable to choose a PWM output accelerometer like the ADXL213AE?

A: Choosing a PWM output accelerometer is suitable when you require easy digital interfacing, noise immunity, and simple data acquisition without using analog-to-digital converters, as the duty cycle can be measured directly by digital timers or counters.

Q: What is the process for integrating the ADXL213AE into an electronic design?

A: To integrate the ADXL213AE, surface-mount the CLCC8 package onto your PCB, connect the supply voltage and PWM outputs to your microcontroller or digital data acquisition system, and calibrate the sensor according to your application's acceleration and sensitivity requirements.

Q: How does the sensitivity of the ADXL213AE affect its acceleration measurements?

A: The sensitivity of the ADXL213AE is 12% PWM duty cycle per 1g of acceleration. This means that for every 1g of detected acceleration, the PWM output's duty cycle changes by 12%, allowing precise and straightforward measurement and calibration.
