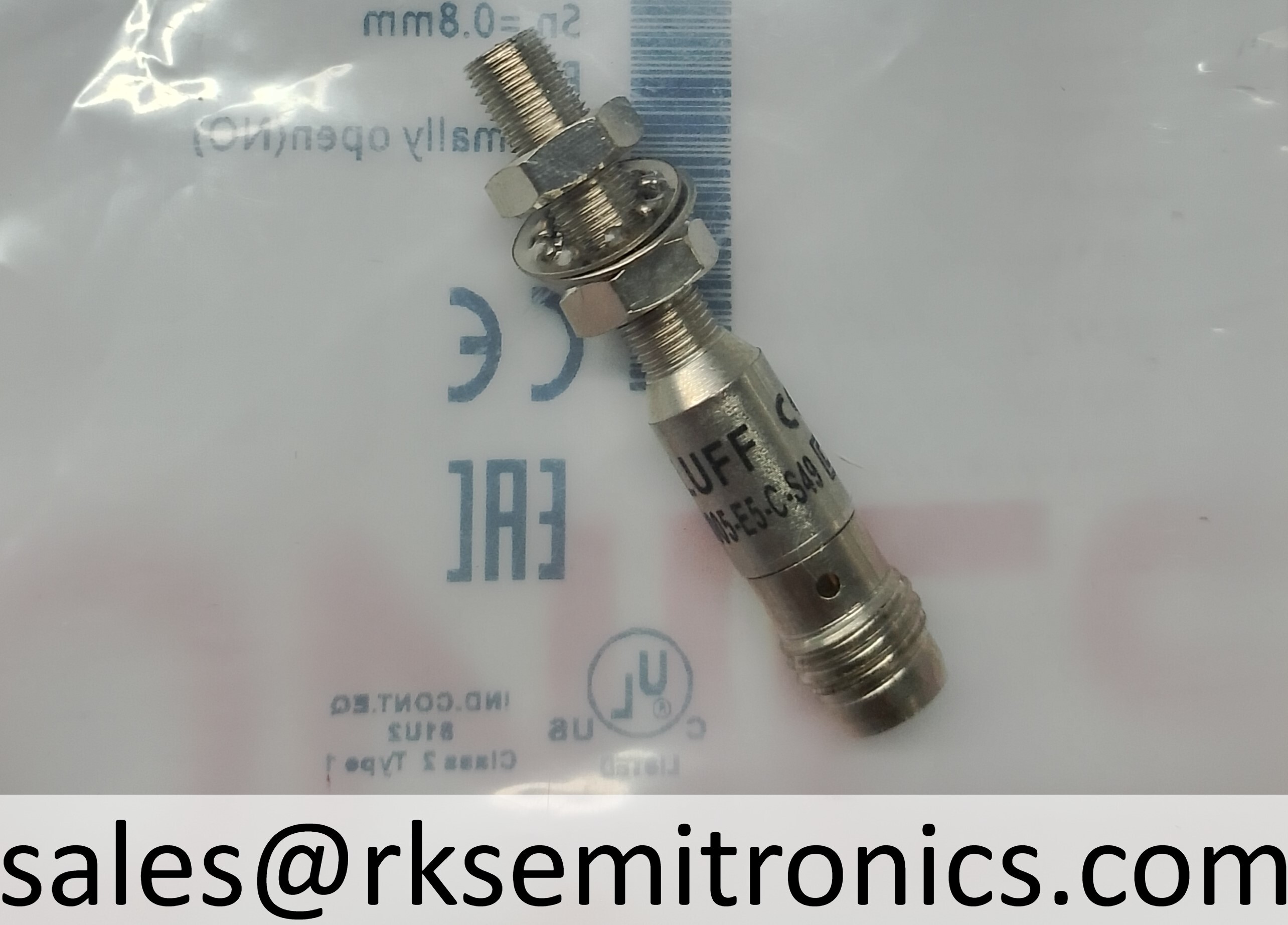

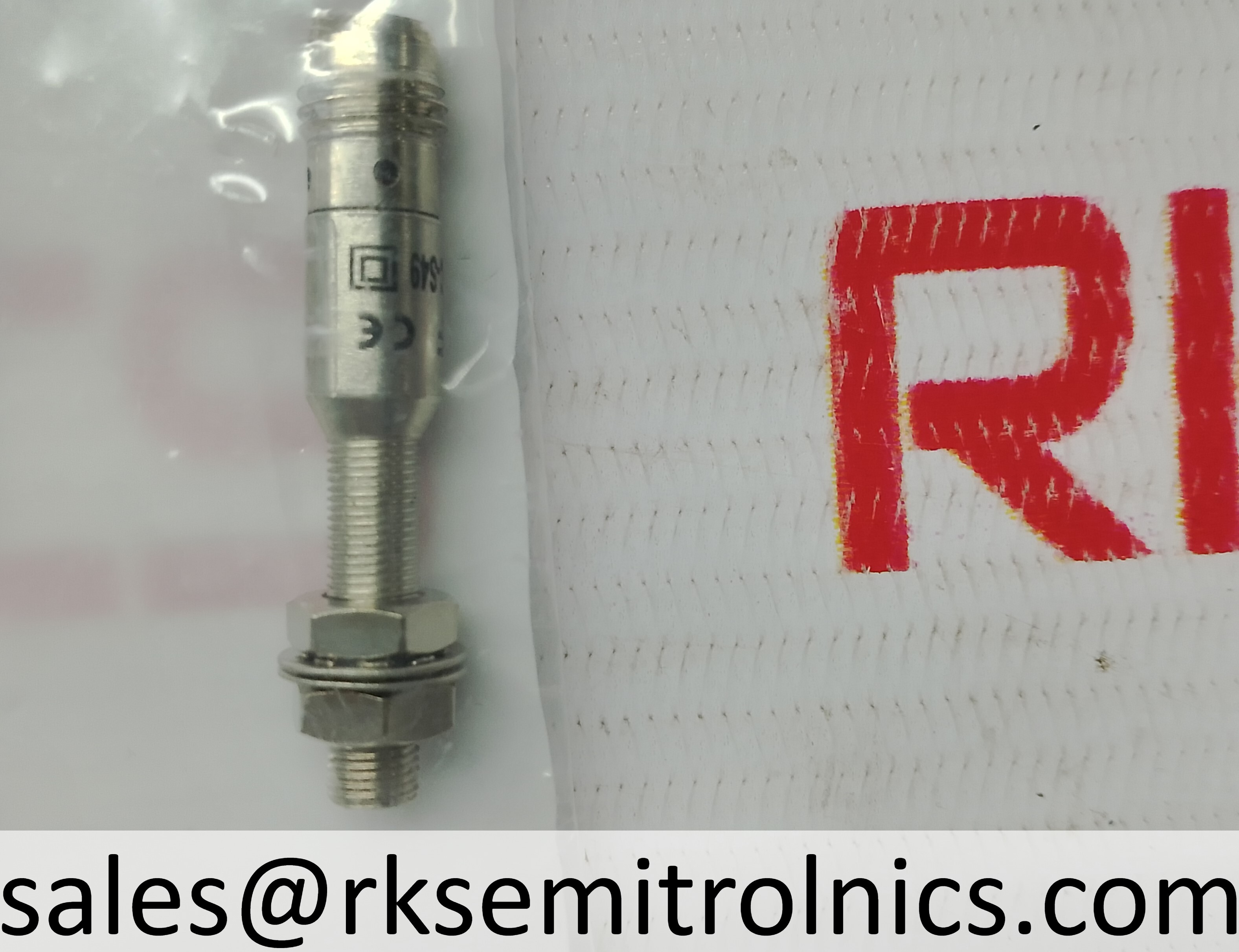

BES00H2 Sensor Prox Inductive

Name: BES00H2 Sensor Prox Inductive
Brand: RKSEMITRONICS INDIA PRIVATE LIMITED
Price: 1550 INR
Availability: InStock

Price 1550 INR/ Piece

Get a Price/Quote

MOQ : 5 Pieces

BES00H2 Sensor Prox Inductive Specification

Power Consumption
<=10 mA (no load)

Operating Temperature
-25C to +70C

Sensitivity
Factory set

Mounting Type
Flush

Response Time
<0.2 ms

Features
Short-circuit protection, Polarity reversal protection, Robust cylindrical housing

Wireless
No

Sensor Type
Inductive sensor

Cable Length
2 meters

IP Rating
IP67

Interface
Cable

Signal Type
Digital

Application
Position and presence detection of metal objects

Measurement Range
Sensing distance 4 mm flush mount

Product Type
Inductive Proximity Sensor

Material
Stainless Steel Housing

Input
DC

Output
PNP Normally Open (NO)

Function
Non-contact object detection

Usage
Industrial automation, machinery, conveyors

Accuracy
High switching accuracy

Resolution
Standard

Voltage
10-30 V DC

Weight
Approximately 40g

Ambient Humidity
35...95% RH

Housing Length
50 mm

Shock Resistance
Tested as per EN 60068-2-27

Vibration Resistance
Tested as per EN 60068-2-6

Target Material
Ferrous metals (best for steel)

Housing Design
M12 cylindrical

Switching Frequency
2 kHz

Standards Compliance
CE, cULus

Connection Type
PVC cable with 3-wire connection

Model Number
BES00H2

BES00H2 Sensor Prox Inductive Trade Information

Minimum Order Quantity
5 Pieces

Delivery Time
10 Days

Main Domestic Market
All India

About BES00H2 Sensor Prox Inductive

ManufacturerBalluffSeriesM5X0PackagingBagPart StatusActiveSensor TypeInductiveSensing Distance0.031" (0.8mm)Output TypePNP-NO, 3-WireResponse Frequency-ShieldingUnshieldedMaterial - BodyStainless SteelVoltage - Supply10V 30VTermination StyleConnectorOperating Temperature-25C 70CIngress ProtectionIP67IndicatorLEDPackage / CaseModule

Robust Stainless Steel Design

Built to last in demanding environments, the BES00H2 sensor's M12 cylindrical stainless steel housing ensures mechanical strength and excellent resistance to wear and chemicals. The device's short-circuit and polarity reversal protections add extra practical durability for use on factory floors and within heavy machinery.

Efficient, Accurate Metal Detection

Engineered for high-precision, the BES00H2 achieves fast response times of less than 0.2 ms and consistently detects ferrous metals at up to 4 mm. Its high switching frequency (2 kHz) and factory-set sensitivity enable swift, dependable position and presence detection, supporting increased productivity in fast-moving automation solutions.

Easy Installation and Compliance

With a 3-wire, 2-meter PVC cable connection, the sensor is simple to integrate into new or existing control systems. The flush mount design streamlines assembly in compact spaces, while compliance with CE and cULus standards and IP67 rating ensures suitability for global and demanding industrial applications.

FAQ's of BES00H2 SENSOR PROX INDUCTIVE:

Q: How is the BES00H2 inductive sensor installed and connected?

A: The BES00H2 sensor has a flush mount M12 cylindrical design and is installed by securing it into a compatible bracket or panel. It uses a 2-meter, 3-wire PVC cable for power and signal transmission, making connection straightforward to standard industrial control systems.

Q: What types of materials does this sensor detect best?

A: The BES00H2 is optimized for the detection of ferrous metal objects, with peak performance for steel targets. Its design ensures reliable triggering where precision metal object sensing is required in automation and machinery.

Q: When should I choose the BES00H2 sensor for my application?

A: Choose this sensor for applications demanding high-accuracy, non-contact detection of metal objects. It's ideal for industrial automation tasks like conveyor positioning, machine part presence, or metal sorting where quick response and robust reliability are essential.

Q: Where can this proximity sensor be used effectively?

A: Thanks to its durable IP67-rated construction and resistance to vibration and shock, the BES00H2 is suitable for harsh, wet, or dusty environments commonly found in factories, machining processes, and conveyor systems.

Q: What are the operational benefits of the BES00H2 sensor?

A: The sensor offers accurate detection with a fast response (<0.2 ms), low power consumption (10 mA with no load), and no moving parts, resulting in minimal maintenance. Its protective features enhance operational safety and reliability.

Q: How does the sensor handle electrical and environmental hazards?

A: The BES00H2 comes equipped with short-circuit and polarity reversal protection. It withstands a wide range of temperatures (-25C to +70C), high humidity, and complies with vibration and shock standards (EN 60068-2-6/27), ensuring stable operation in challenging conditions.

Q: What is the typical process for using this sensor in industrial automation?

A: The sensor is mounted at critical points to detect presence or position of metal components. Upon detecting a target, it generates a digital PNP Normally Open signal sent to controllers or actuators, automating tasks such as object counting, sorting, machine safety interlocks, or process feedback.
