M4T28-BR12SH1 Micro Electronic Switches

Name: M4T28-BR12SH1 Micro Electronic Switches
Brand: RKSEMITRONICS
Price: 397 INR
Availability: InStock

Price 397 INR/ Piece

Get a Price/Quote

MOQ : 15 Pieces

M4T28-BR12SH1 Micro Electronic Switches Specification

Response Time
5 ms

Max. Current
10A

Protection Level
IP67

Automation Grade
Manual

Finish Type
Matte

Number of Module
Single

Mechanical Life
1,000,000 cycles

Rated Voltage
12V

Circuit Type
SPDT

Temperature Range
-40C to +85C

Product Type
Micro Electronic Switch

Material
High-grade Engineering Plastic, Metal Contacts

Insulation Resistance
100 M min at 500VDC

Contact Resistance
50 m max

Max. Voltage
12V DC

Operating Temperature
-40C to +85C

Stoke
2.5 mm

Size
28 mm x 12 mm

Color
Black

Weight
4g

Mounting Type
PCB Mount, Surface Mount

Current Rating
10A

No Of Poles
1

Release Force
30 gf min

Shock Resistance
1000 m/s², 6 ms

Terminal Type
Solder Lug/Pin

Humidity Resistance
95% RH max at 40°C

RoHS Compliance
Yes

Contact Material
Silver Alloy

Switch Type
Momentary

Operating Force
120 gf max

Dielectric Strength
1000 VAC, 50/60 Hz for 1 minute

Vibration Resistance
10-500 Hz, 1.5 mm double amplitude

M4T28-BR12SH1 Micro Electronic Switches Trade Information

Minimum Order Quantity
15 Pieces

Delivery Time
10 Days

Main Domestic Market
All India

About M4T28-BR12SH1 Micro Electronic Switches

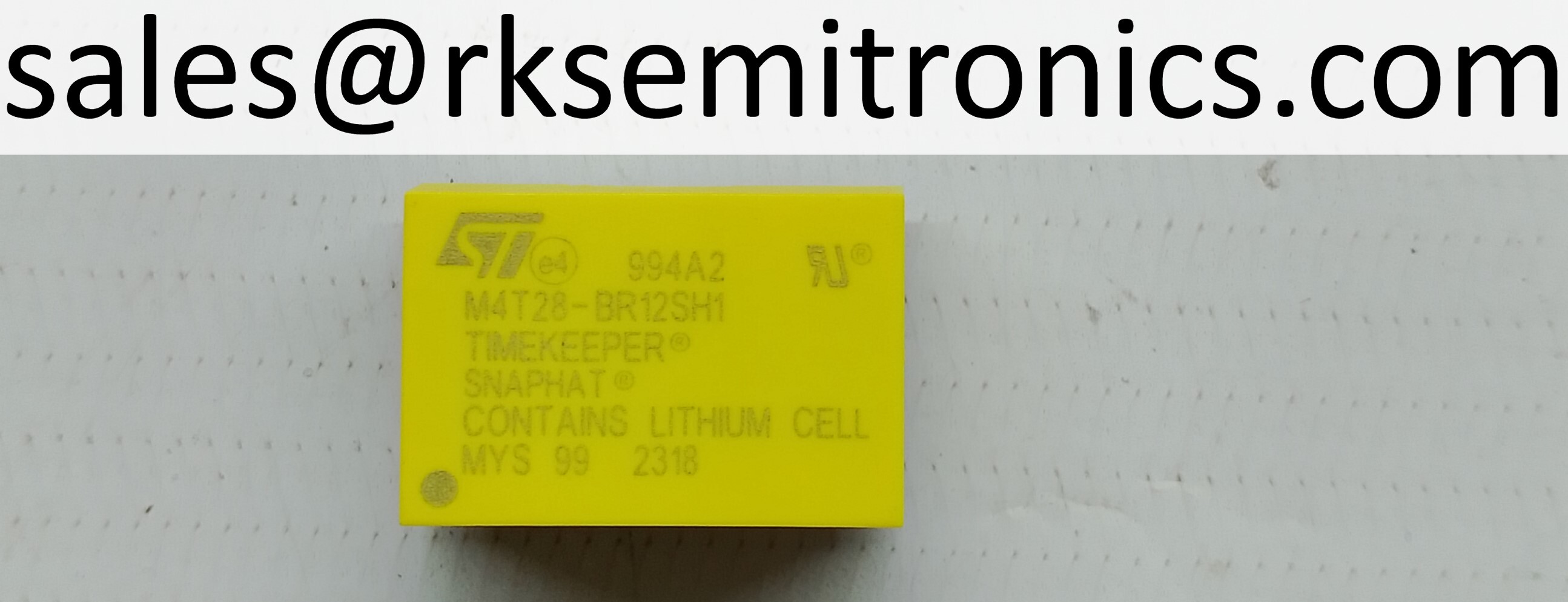

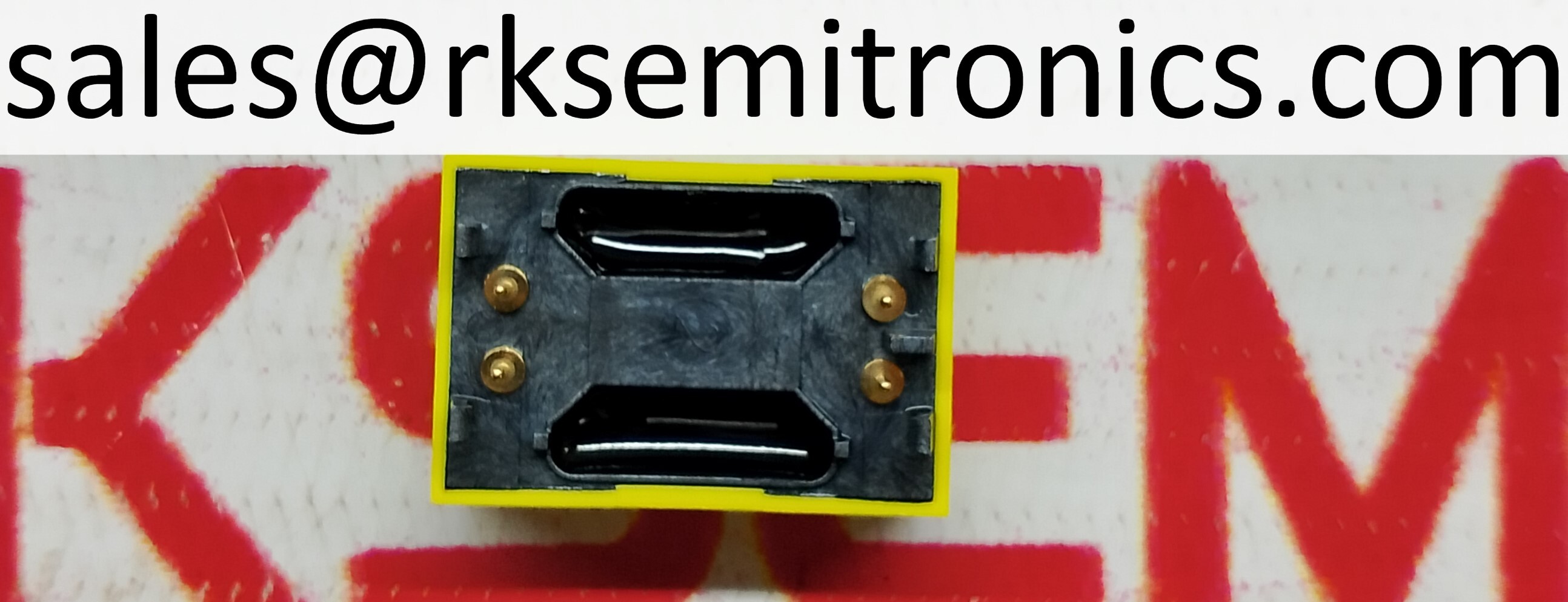

Manufacturer: STMicroelectronics Product Category: Electronic Battery RoHS: Details Rechargeable/Non-Rechargeable: Non-Rechargeable Output Voltage: 2.8 V Capacity: 48 mAh Battery Chemistry: Lithium Carbon Monofluoride (LiCF) Termination Style: PC Pins (Horizontal 4-Pin) Length: 21.082 mm Width: 14.224 mm Height: 6.477 mm Minimum Operating Temperature: 0 C Maximum Operating Temperature: + 70 C Packaging: Tube Brand: STMicroelectronics Product Type: Electronic Battery Series: M4T28-BR12SH 690 Subcategory: Battery Tradename: SNAPHA

Superior Environmental Endurance

Engineered for tough conditions, the M4T28-BR12SH1 switch withstands extreme temperatures from -40C to +85C and up to 95% humidity at 40C. The IP67 rating offers complete protection against dust and immersion in water, making this switch ideal for industrial and outdoor applications in Malaysia's varied climates.

Robust Electrical and Mechanical Performance

This device boasts a dielectric strength of 1000 VAC and insulation resistance of 100 M min, ensuring electrical safety. With a mechanical life expectancy of up to 1,000,000 cycles and a quick 5 ms response time, the switch ensures long-lasting reliability and swift operation for numerous automated and manual systems.

Versatile Mounting and Compact Design

Measuring just 28 mm x 12 mm and weighing only 4g, this switch offers flexible PCB mount and surface mount options. Its single-module construction and black matte finish make for easy integration into a wide range of devices, saving precious board space while providing robust switching performance.

FAQ's of M4T28-BR12SH1 Micro Electronic Switches:

Q: How do I install the M4T28-BR12SH1 micro switch in my device?

A: The M4T28-BR12SH1 can be installed using either PCB mount or surface mount techniques, thanks to its solder lug/pin terminal type. Ensure that the contact materials and pins are properly aligned with your circuitry for secure and efficient installation.

Q: What applications benefit most from this micro switch's features?

A: With its high operating force, IP67 protection, and robust mechanical life, this switch is well-suited for industrial automation, outdoor controls, automotive electronics, and machinery requiring reliable momentary action even in demanding environments.

Q: When should the switch be replaced during regular use?

A: Although the switch is rated for a mechanical life of up to 1,000,000 cycles, replacement is typically recommended if you notice increased contact resistance (above 50 m), inconsistent actuation, or visible damage after extended use.

Q: Where can I use the M4T28-BR12SH1 considering its environmental resistance?

A: This switch is designed for use in environments subjected to dust, water, vibrations, and wide temperature fluctuations. It performs reliably in both indoor and outdoor settings, particularly in harsh industrial climates typically found in Malaysia.

Q: What is the process for cleaning or maintaining this micro switch?

A: Thanks to its IP67 rating, the switch requires minimal maintenance. However, periodically check for debris around the actuator and avoid using harsh chemicals. Ensure the terminals remain free from oxidation for sustained conductivity.

Q: What are the key benefits of choosing a RoHS-compliant switch like this?

A: Selecting a RoHS-compliant switch, such as the M4T28-BR12SH1, ensures that the product is free from hazardous substances commonly found in electronics, making it environmentally friendly and suitable for applications with strict regulatory requirements.
