ML100-8-1000-RT/102/115 Diffuse Mode Sensor

Send Inquiry

Request To Call Back

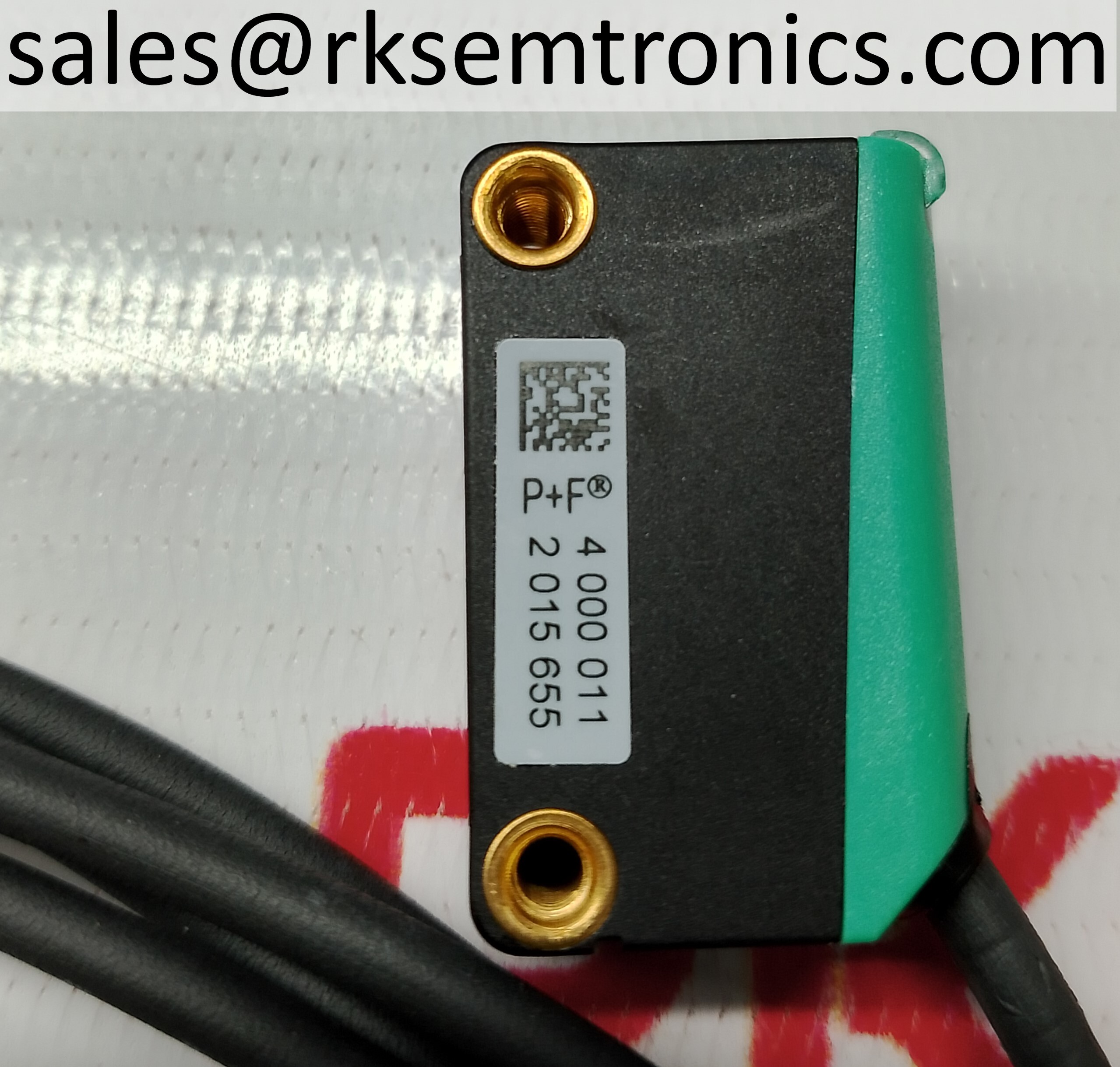

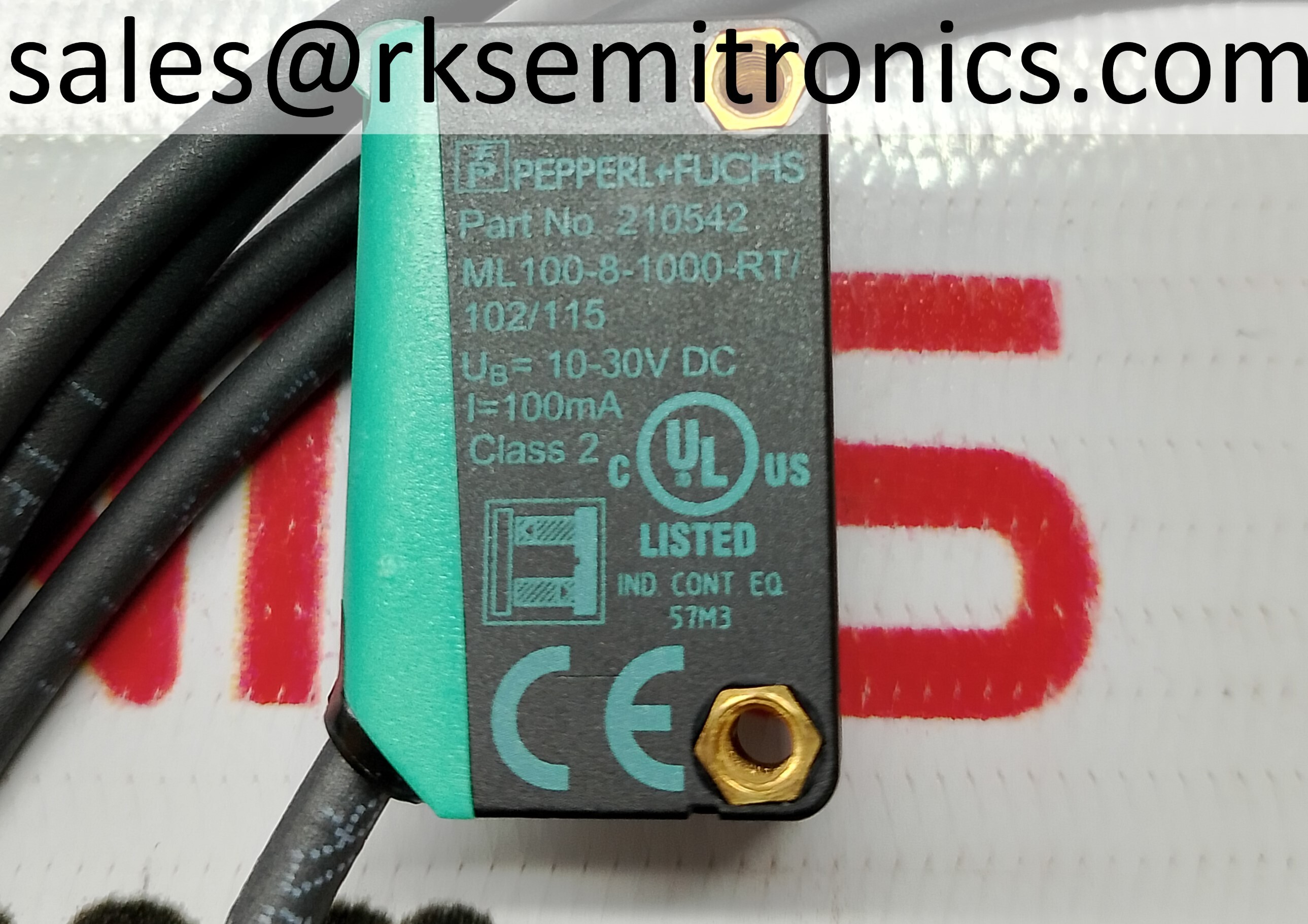

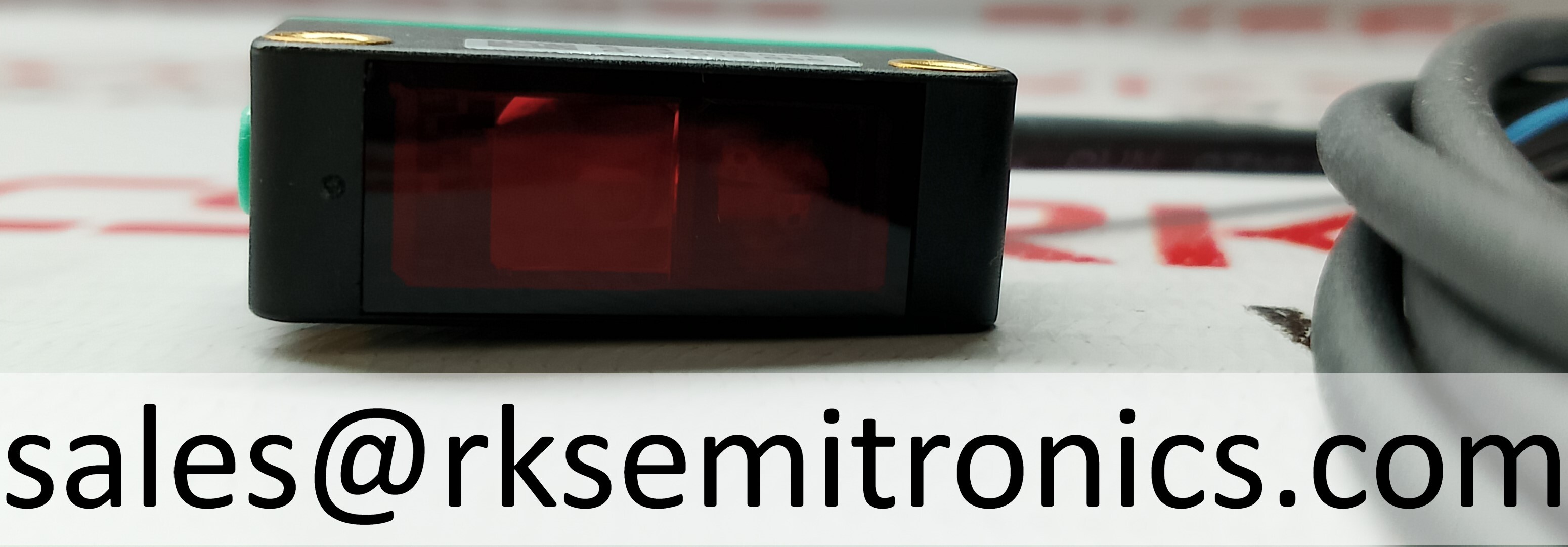

ML100-8-1000-RT/102/115 Diffuse Mode Sensor

Name: ML100-8-1000-RT/102/115 Diffuse Mode Sensor
Brand: RKSEMITRONICS INDIA PRIVATE LIMITED
Price: 3250 INR
Availability: InStock

Price 3250 INR/ Piece

Get a Price/Quote

MOQ : 2 Pieces

ML100-8-1000-RT/102/115 Diffuse Mode Sensor Specification

Sensor Type
Photoelectric diffuse mode sensor

Features
LED status indicator, short-circuit protected, polarity reversal protection

Signal Type
Digital

Power Consumption
100 mA

Operating Temperature
-25C to +55C

Measurement Range
1000 mm (1 m)

Response Time
Fast (<1 ms typical)

Sensitivity
Adjustable

Application
Detection of objects in industrial environments

Mounting Type
Through-hole (M3) or surface mount

IP Rating
IP67

Cable Length
Typically 2 m, standard cable

Housing Material
Plastic

Interface
2-wire or 3-wire (PNP/NPN, programmable)

Spectral Range
Red light (visible)

Wireless
No

Ingress Protection
IP67

Product Type
Diffuse mode sensor

Material
Plastic

Input
10-30V DC

Output
Switching output (normally open/closed, programmable)

Function
Presence detection

Usage
Industrial automation, object detection

Voltage
10-30V DC

Polarity Protection
Yes

Standards and Certifications
CE, UL Listed, cULus

Connection Type
Pre-wired cable

Class
Class 2

Part Number
ML100-8-1000-RT/102/115

Listed Marking
UL Listed

Adjustment
Sensitivity adjustment via potentiometer

Short-circuit Protection
Yes

ML100-8-1000-RT/102/115 Diffuse Mode Sensor Trade Information

Minimum Order Quantity
2 Pieces

Delivery Time
10 Days

Sample Available
Yes

Main Domestic Market
All India

About ML100-8-1000-RT/102/115 Diffuse Mode Sensor

Detection range 0 ... 1000 mmAdjustment range 100 ... 1000 mmReference target standard white, 100 mm x 100 mmLight source LEDLight type modulated visible red lightPolarization filter noDiameter of the light spot approx. 75 mm at a distance of 1000 mmOpening angle approx. 2 Optical face frontalAmbient light limit EN 60947-5-2:2007+A1:2012

Reliable Object Detection for Industrial Automation

Designed for challenging industrial environments, the ML100-8-1000-RT/102/115 sensor excels in detecting objects with high accuracy. Its durable plastic housing, IP67 protection, and adjustable sensitivity enable seamless integration into automation systems where reliability and flexibility are crucial. The sensor's fast reaction time and robust certifications ensure operational safety and continuous productivity.

Programmable and User-Friendly Operation

Featuring a programmable switching output (NO/NC) and adjustable sensitivity through a simple potentiometer, this sensor facilitates tailored detection for your application. The clear LED status indicator and polarity/short-circuit protection make installation and maintenance straightforward and worry-free. Its flexible connection options support a wide range of automation requirements.

FAQ's of ML100-8-1000-RT/102/115 Diffuse mode sensor:

Q: How do I adjust the sensitivity of the ML100-8-1000-RT/102/115 diffuse mode sensor?

A: Sensitivity is easily adjustable using the built-in potentiometer. This allows you to set the detection range according to your specific object types and distances, ensuring accurate performance in various industrial tasks.

Q: What is the recommended application environment for this sensor?

A: The sensor is designed for demanding industrial settings, suitable for both through-hole and surface mounting. Its robust construction and IP67 rating make it ideal for environments where water and dust resistance are essential, such as manufacturing, packaging, and assembly lines.

Q: When should I use the programmable switching output feature?

A: You should use the programmable NO/NC output for flexibility in system integration, allowing the sensor to adapt to different logic requirements in your automation or safety circuits. This enables easy compatibility with existing control system configurations.

Q: Where can I find information about the sensor's certifications and compliance?

A: The ML100-8-1000-RT/102/115 sensor is CE marked, UL Listed, and cULus certified. These certifications are typically indicated on the sensor housing, datasheet, or user manual, confirming compliance with international safety and performance standards.

Q: What process should I follow to install this sensor?

A: Begin by selecting an appropriate mounting method (through-hole M3 or surface mount). Use the pre-wired cable for electrical connection, ensuring correct polarity. Configure the sensor output (NO/NC) and adjust the sensitivity as required. Confirm secure installation using the LED status indicator to verify operational readiness.

Q: How does the sensor ensure protection against electrical faults?

A: The ML100-8-1000-RT/102/115 features both polarity reversal and short-circuit protection, which prevent damage in the event of incorrect wiring or inadvertent electrical faults. This ensures long-term operational safety and minimizes downtime.

Q: What are the key benefits of using this diffuse mode sensor in industrial applications?

A: This sensor offers fast response times, robust environmental protection (IP67), high flexibility through adjustable sensitivity and programmable output, and easy installation. Its visible red light ensures simple alignment, while international certifications guarantee reliability and safety in industrial automation scenarios.
