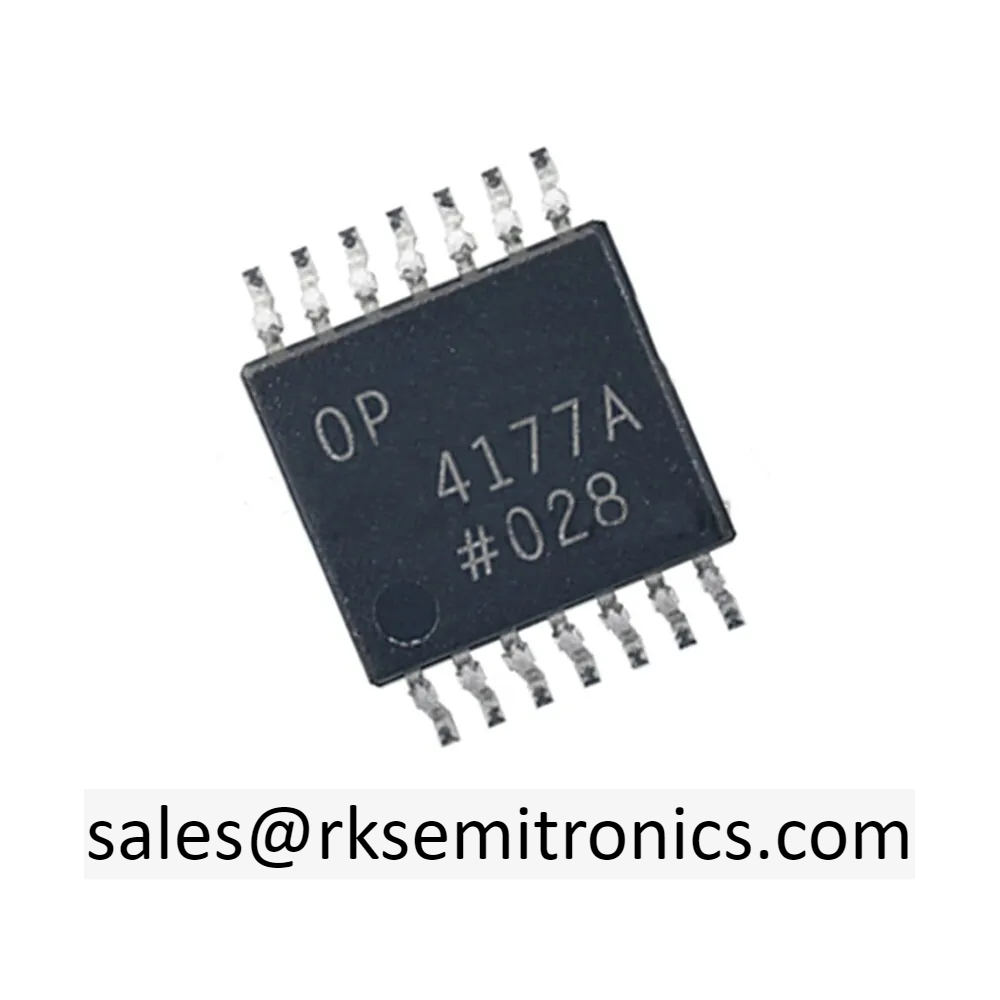

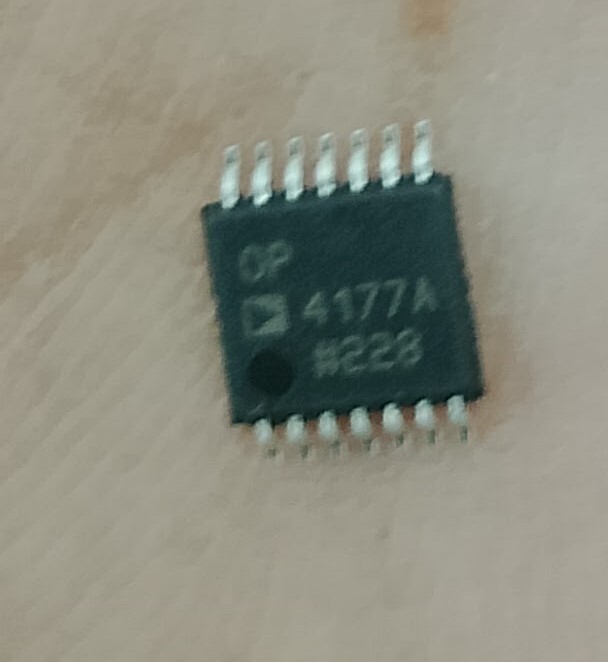

OP4177ARUZ Operational Amplifier IC

Name: OP4177ARUZ Operational Amplifier IC
Brand: RKSEMITRONICS INDIA PRIVATE LIMITED
Price: 225 INR
Availability: InStock

Price 225 INR/ Piece

Get a Price/Quote

MOQ : 25 Pieces

OP4177ARUZ Operational Amplifier IC Specification

Output
Analog Signal

Power Supply
Dual or Single Supply

Components
Monolithic IC

Features
Ultra-low offset voltage, Low noise, High accuracy

Input
Analog Signal

Operating Temperature
-40C to +125C

Power Source
External DC Supply

Usage
Signal Amplification, Precision Analog Circuits

Response Time
Slew Rate: 0.3 V/s (typical)

Interface
SMD - TSSOP-14

Product Type
Operational Amplifier IC

Application
Instrumentation, Data Acquisition, Medical Instruments, Industrial Control

Rated Voltage
36V (maximum supply voltage)

Supply Voltage
+2.7V to +36V

Size
TSSOP-14 Package

Dimension (L*W*H)
5.0mm x 4.4mm x 1.0mm (approximate for TSSOP-14)

Function
Operational Amplifier IC

Color
Black

Weight
Approximately 0.1g (for TSSOP-14 package)

Thickness
Approx. 1.0 mm (for TSSOP-14)

Current Rating
600 A per amplifier (typical)

Frequency
Gain-Bandwidth Product: 1.3 MHz

Part Number
OP4177ARUZ

CMRR (Common Mode Rejection Ratio)
120 dB (typical)

Input Voltage Noise Density
11 nV/Hz

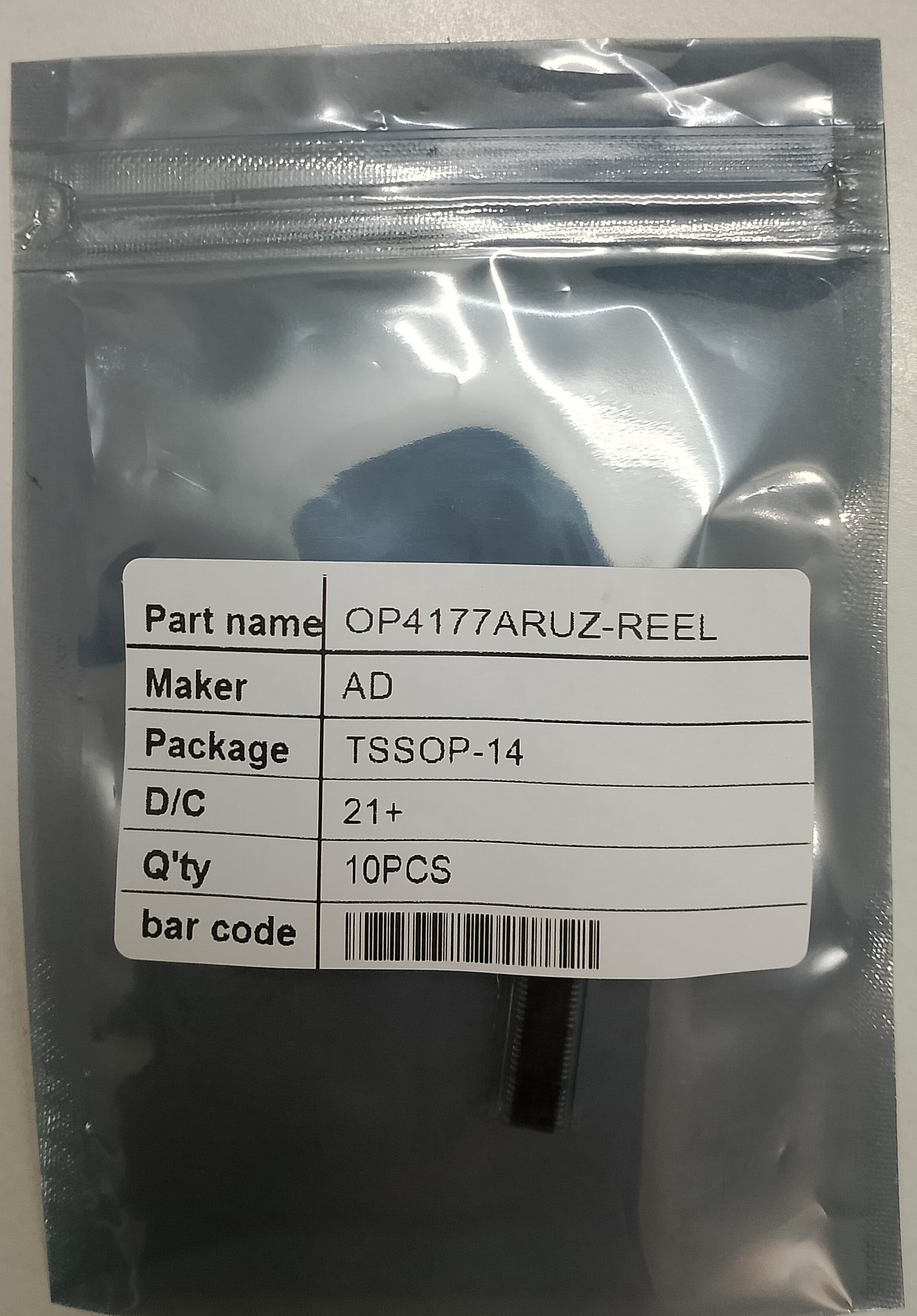

Packaging
Tape & Reel, Surface Mount

Number of Channels
4 (Quad Op Amp)

Input Offset Voltage
50 V (typical)

Input Bias Current
2 nA (typical)

Mounting Type
Surface Mount (SMT/SMD)

Rail-to-Rail Output
No, standard output swing

OP4177ARUZ Operational Amplifier IC Trade Information

Minimum Order Quantity
25 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About OP4177ARUZ Operational Amplifier IC

Amplifier Type	General Purpose
Number of Circuits	4
Output Type	-
Slew Rate	0.7V/µs
Gain Bandwidth Product	1.3 MHz
Current - Input Bias	500 pA
Voltage - Input Offset	15 µV
Current - Supply	400µA (x4 Channels)
Current - Output / Channel	10 mA
Voltage - Supply Span (Min)	5 V
Voltage - Supply Span (Max)	30 V
Operating Temperature	-40C 125C
Mounting Type	Surface Mount

Unmatched Precision for Analog Signal Processing

The OP4177ARUZ operational amplifier IC excels in precision analog circuitry, offering ultra-low input offset voltage and minimal noise levels. Its high common-mode rejection ratio ensures signal integrity, making it an excellent choice for demanding instrumentation and data acquisition systems.

Flexible Power Supply & Compact Design

Designed for versatility, the OP4177ARUZ supports both single and dual external DC supplies from +2.7V up to +36V. Its compact TSSOP-14 surface-mount package saves board space without compromising performance, ensuring compatibility with modern electronic designs.

Reliable Performance Across Extreme Conditions

This operational amplifier is tailored for use in environments that demand reliability, offering stable operation from -40C to +125C. With a robust design and high accuracy, it meets the needs of critical industrial, medical, and control applications.

FAQ's of OP4177ARUZ Operational Amplifier IC:

Q: How can the OP4177ARUZ operational amplifier be integrated into a signal amplification circuit?

A: The OP4177ARUZ can be easily integrated into signal amplification circuits by using its standard analog input and output pins. Its TSSOP-14 surface-mount package allows for straightforward SMT/SMD assembly onto PCBs, suitable for precision and low-noise applications.

Q: What types of power supplies are compatible with the OP4177ARUZ IC?

A: This operational amplifier supports both single and dual external DC power supplies, with a supply voltage range from +2.7V up to +36V. This flexibility allows it to adapt to various analog circuit requirements.

Q: When should I choose the OP4177ARUZ over other operational amplifiers?

A: Choose the OP4177ARUZ when your application requires ultra-low offset voltage, low noise, and high common-mode rejection, especially in precision analog, instrumentation, or medical systems demanding high accuracy and stability.

Q: Where is the OP4177ARUZ typically used?

A: This IC is commonly found in instrumentation, data acquisition systems, medical devices, and industrial controls where precision analog signal processing is essential.

Q: What is the main benefit of the OP4177ARUZ for designers?

A: Designers benefit from the OP4177ARUZ's combination of high precision, low noise, wide supply voltage operation, and compact surface-mount form factor, ensuring reliable performance in space-constrained and high-reliability applications.

Q: How does the OP4177ARUZ amplify analog signals accurately?

A: With its ultra-low input offset voltage (50 V typ.), low input bias current, and high CMRR (120 dB typ.), the OP4177ARUZ minimizes signal distortion and error, resulting in faithful and accurate analog signal amplification.
