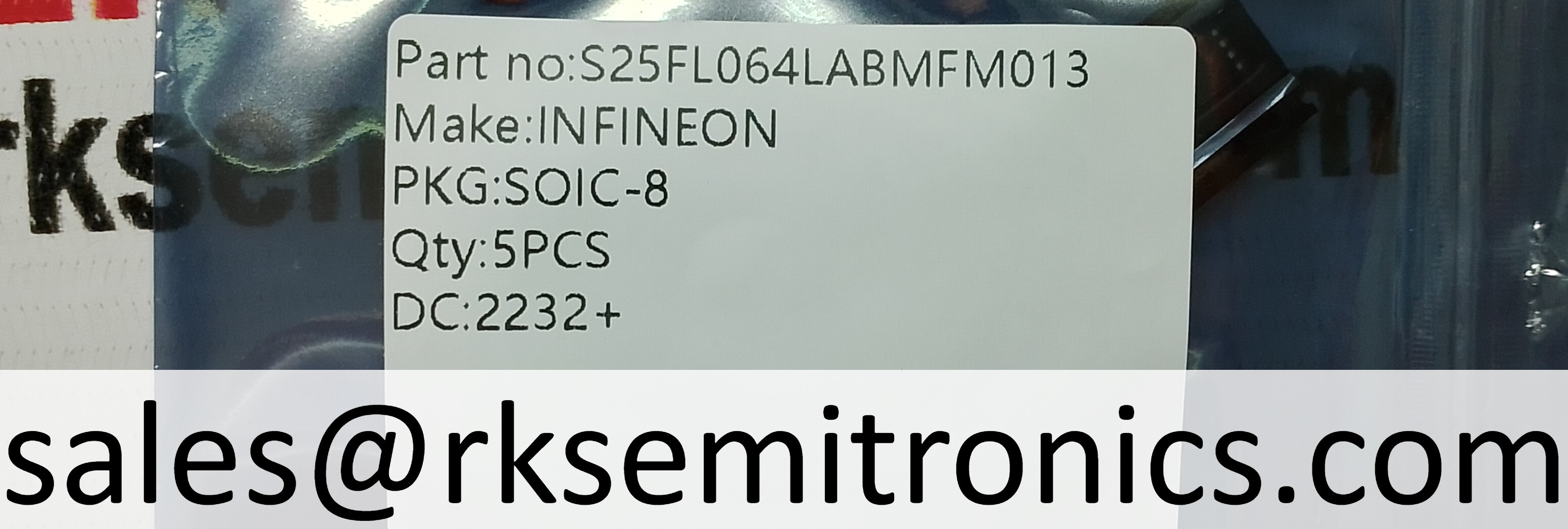

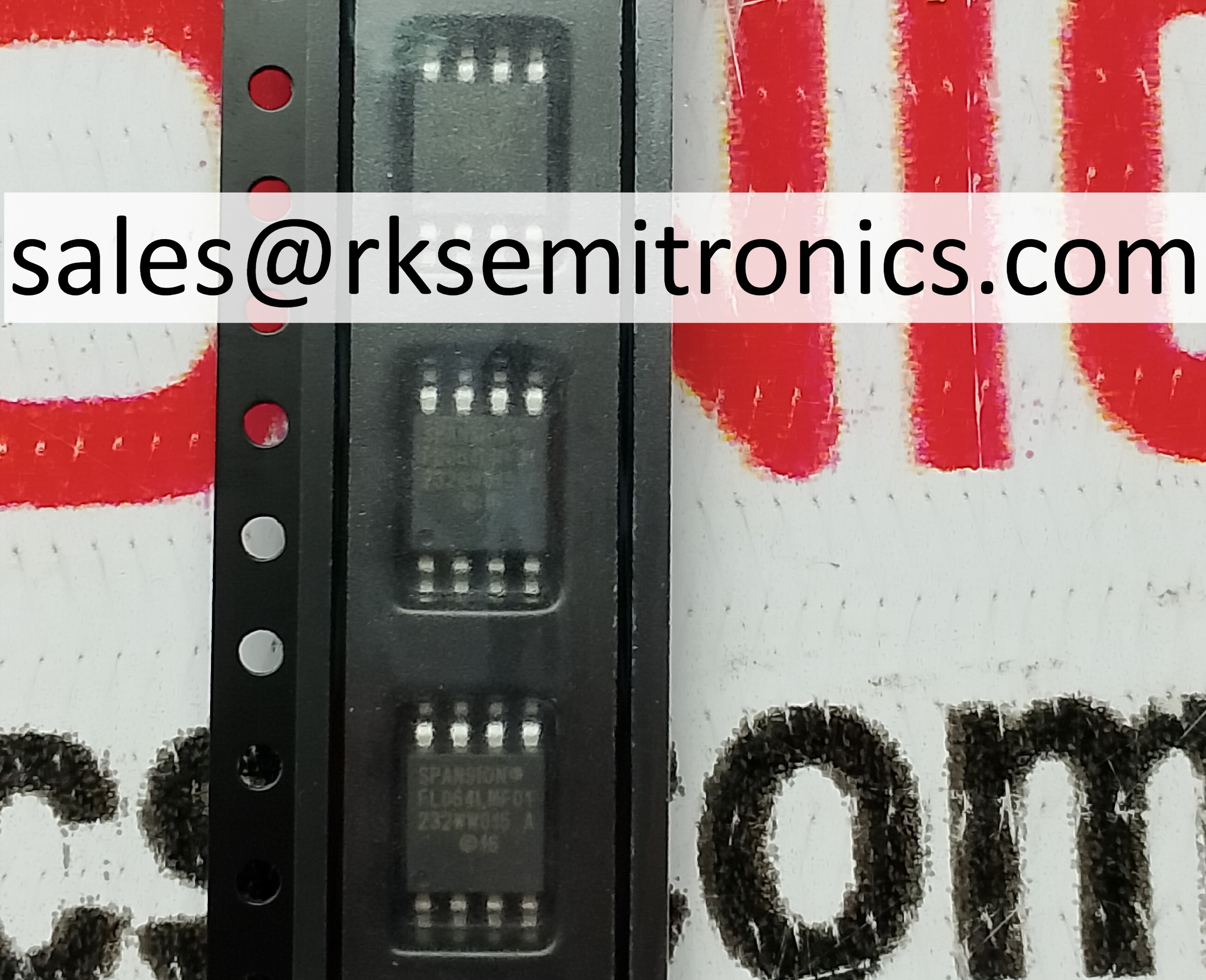

S25FL064LABMFM013 IC Chip

Name: S25FL064LABMFM013 IC Chip
Brand: RKSEMITRONICS INDIA PRIVATE LIMITED
Price: 22.0 INR
Availability: InStock

Price 22.0 INR/ Piece

Get a Price/Quote

MOQ : 20 Pieces

S25FL064LABMFM013 IC Chip Specification

Power Supply
External, Vcc

Output
Digital memory data

Features
Supports uniform 4KB sectors, 64KB blocks, and offers high reliability

Operating Temperature
-40C to +85C

Interface
SPI

Power Source
External supply

Components
Integrated circuit

Usage
Memory storage in electronic devices

Input
SPI (Serial Peripheral Interface)

Response Time
Fast read access time, ~20 ns (random read)

Product Type
IC Chip

Application
Consumer electronics, Industrial, Automotive systems

Rated Voltage
2.7V to 3.6V

Supply Voltage
2.7V to 3.6V

Size
SOIC-8 standard dimensions

Dimension (L*W*H)
Approx. 5.0mm x 4.0mm x 1.5mm

Function
Serial NOR Flash Memory IC

Color
Black

Weight
Approx. 0.02 g

Thickness
Standard SOIC-8 package

Current Rating
Read: 16 mA, Write: 30 mA (typical)

Capacity
64 Mbit (8 Mbyte)

Frequency
Up to 104 MHz (SPI clock)

Data Retention
20 years minimum

Mounting Type
Surface Mount

Organization
8M x 8 bit

Package Type
SOIC-8

RoHS Compliance
Yes

Lead Finish
Matte Tin

Endurance
100,000 Program/Erase Cycles

ECC Support
No (not required at this density)

Sector Architecture
Uniform 4KB Sectors

Write Protection
Hardware & Software Data Protection

Page Size
256 Bytes

Pin Count
8

S25FL064LABMFM013 IC Chip Trade Information

Minimum Order Quantity
20 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About S25FL064LABMFM013 IC Chip

CategoryIntegrated Circuits (ICs)MemoryMemoryMfrInfineon TechnologiesSeriesFL-LPackagingTape & Reel (TR)Cut Tape (CT)Digi-ReelPart StatusActiveDigiKey ProgrammableNot VerifiedMemory TypeNon-VolatileMemory FormatFLASHTechnologyFLASH - NORMemory Size64MbitMemory Organization8M x 8Memory InterfaceSPI - Quad I/O, QPIClock Frequency108 MHzWrite Cycle Time - Word, Page-Voltage - Supply2.7V 3.6VOperating Temperature-40C 125C (TA)GradeAutomotiveQualificationAEC-Q100Mounting TypeSurface MountPackage / Case8-SOIC (0.209", 5.30mm Width)Supplier Device Package8-SOICBase Product NumberS25FL064

Robust Memory Solution for Diverse Applications

The S25FL064LABMFM013 offers an 8M x 8-bit organization and uniform 4KB sectors, ensuring dependable memory storage across applications. Its wide operating temperature makes it suitable for consumer, industrial, and automotive uses. With enhanced data protection and easy surface-mount packaging, integrating this IC into your system boosts reliability and efficiency.

High Endurance and Longevity

Built to last, the IC chip supports up to 100,000 program/erase cycles and guarantees a minimum data retention of 20 years. Whether you're designing long-life industrial equipment or automotive systems that demand stability, this flash memory chip's parameters are tailored for endurance and long-term use.

Efficient Performance with SPI Interface

Using a fast SPI interface supporting up to 104 MHz, the S25FL064LABMFM013 delivers swift memory access, with a typical random read access time of just 20 ns. Its low power consumption during read/write operations and hardware as well as software data protection ensure safe and efficient operation.

FAQ's of S25FL064LABMFM013 IC Chip:

Q: How is data written or read from the S25FL064LABMFM013 IC chip?

A: The S25FL064LABMFM013 IC chip utilizes the SPI (Serial Peripheral Interface) protocol for both read and write operations. This standard interface enables fast communication with microcontrollers and digital systems.

Q: What is the typical lifespan and data retention of this flash memory IC?

A: This chip is designed for high endurance, supporting up to 100,000 program/erase cycles per sector, and it retains data for at least 20 years, making it ideal for applications that require reliable long-term storage.

Q: When should I use this specific IC in my designs?

A: You should use the S25FL064LABMFM013 whenever you need non-volatile, high-speed storage in environments requiring wide operating temperature ranges, such as consumer electronics, industrial automation, or automotive control units.

Q: Where can the S25FL064LABMFM013 IC be mounted during assembly?

A: This IC features a standard SOIC-8 surface-mount package, suitable for PCB mounting using standard automated assembly equipment, optimizing manufacturing efficiency for various electronic products.

Q: What are the main protective features of this serial NOR flash memory chip?

A: The chip provides both hardware and software data protection mechanisms, ensuring stored information is safeguarded against unauthorized changes or accidental data corruption during operation.

Q: How does the uniform 4KB sector architecture benefit users?

A: Uniform 4KB sectors allow for straightforward memory management, reducing software complexity when erasing or updating data and improving flexibility in application design.

Q: What are the primary benefits of using this IC chip in terms of power supply and compliance?

A: Operating on an external supply voltage between 2.7V and 3.6V, the chip is RoHS compliant, ensuring environmental safety, and features a matte tin lead finish optimized for modern lead-free soldering techniques.
