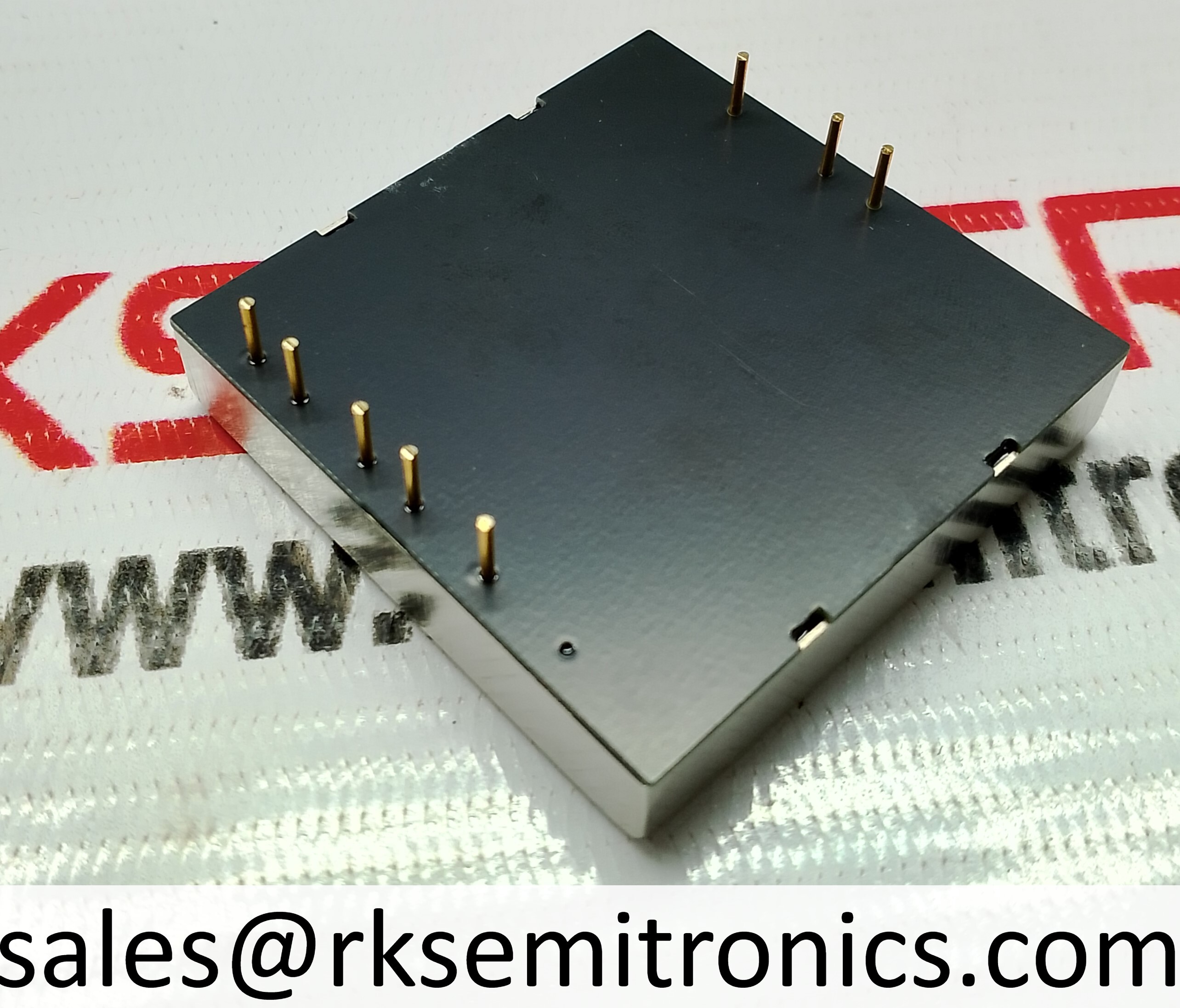

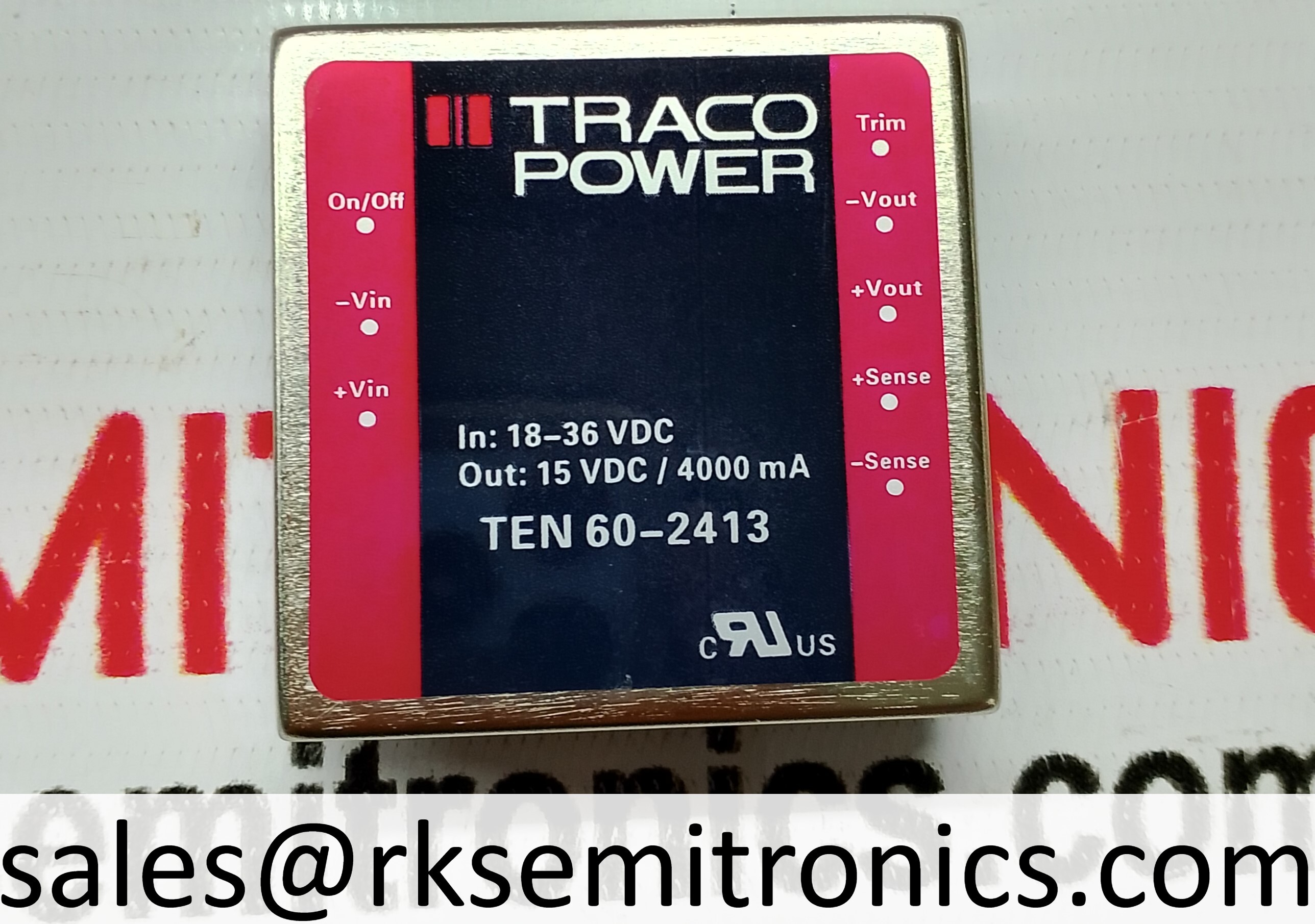

TEN 60-2413 Isolated DC/DC Converter

Name: TEN 60-2413 Isolated DC/DC Converter
Brand: RKSEMITRONICS INDIA PRIVATE LIMITED
Price: 6800 INR
Availability: InStock

Price 6800 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TEN 60-2413 Isolated DC/DC Converter Specification

Power Supply
DC Power

Components
Integrated module

Interface
Solder pins / PCB mount

Thermal Conductivity
Low thermal resistance case

Features
Isolated output, compact size, high efficiency, protected design

Usage
Voltage conversion, Industrial electronics

Power Source
DC

Output
15 VDC / 4000 mA

Operating Temperature
-40C to +85C

Response Time
Fast regulation

Input
18-36 VDC

Product Type
Isolated DC/DC Power Module

Application
Industrial, Medical, Signal conversion

Rated Voltage
Input: 18-36 VDC

Supply Voltage
18-36 VDC

Size
Standard DC/DC Converter size

Dimension (L*W*H)
50.8 x 50.8 x 10.2 mm (2 x 2 x 0.40)

Function
Isolated DC/DC Converter

Color
Black / Red (with silver case)

Weight
Approx. 100 grams

Current Rating
4A Output

Thickness
Standard module thickness (approx. 10mm)

Capacity
60 W

Efficiency
up to 92%

Storage Temperature
-55C to +125C

Warranty Conditions
Manufacturer's warranty applies

Ripple & Noise
Typical <75 mVp-p

Mounting Type
Through hole / PCB mount

Relative Humidity
Up to 95% (non-condensing)

Case Material
Metal shielded case

Short Circuit Protection
Yes

Isolation Voltage
1500 VDC

Overload Protection
Yes

Remote On/Off
Supported

Model
TEN 60-2413

TEN 60-2413 Isolated DC/DC Converter Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1000 Pieces Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About TEN 60-2413 Isolated DC/DC Converter

Act now for a LIMITED TIME on the impeccable TEN 60-2413 Isolated DC/DC Converter! This hot deal offers an astounding efficiency of up to 92% with a robust metal shielded case, ensuring impeccable safety with 1500 VDC isolation voltage. Boasting terrific short circuit and overload protection, this unit supports remote on/off and features a low ripple & noise of <75 mVp-p. Ready for industrial or medical use, the TEN 60-2413 is your last chance to secure a high-performance, UR cULus and CE certified module with fast response time and compact, resilient design. Don't miss out!

TEN 60-2413: Where Excellence Meets Application

The TEN 60-2413 Isolated DC/DC Converter is widely used for voltage conversion in industrial electronics, medical devices, and signal processing systems. It stands out for its high efficiency, astoundingly compact size, and robust protection features. Competitively advantageous with its UR cULus and CE marks, this converter caters to demanding professionals and organizations who prioritize reliability and performance in critical applications.

Sample Availability & Certifications - Secure Your Supply Today!

Sale price options and express shipping ensure you get your TEN 60-2413 sample swiftly and efficiently. Large supply ability accommodates orders of any proposal amount, making it perfect for ongoing operations and fast ramp-ups. With globally recognized certifications like UR cULus and CE, your investment is not only protected but assured in performance. Don't hesitate to request a sample and take advantage of these exceptional supply terms.

FAQ's of TEN 60-2413 Isolated DC/DC Converter:

Q: How does the TEN 60-2413 ensure reliable operation in demanding environments?

A: The TEN 60-2413 features a metal shielded case, high isolation voltage (1500 VDC), and robust protections against short circuits and overloads, making it suitable for tough industrial and medical settings.

Q: What certifications does the TEN 60-2413 carry for compliance and safety?

A: This converter is certified with UR cULus and CE marks, ensuring it meets rigorous global standards for safety, performance, and reliability.

Q: When is it best to use the TEN 60-2413 isolated DC/DC converter?

A: It's ideal for applications requiring stable voltage conversion, high efficiency, and electrical isolation, such as industrial automation, medical instrumentation, and advanced signal conversion tasks.

Q: Where can I purchase the TEN 60-2413 and are samples available?

A: You can purchase the TEN 60-2413 from authorized suppliers and traders. Samples are available for qualifying customers; inquire now to take advantage of the sale price and express shipping.

Q: What are the benefits of choosing the TEN 60-2413 for my application?

A: This module offers superb efficiency, fast regulation, low noise, and comprehensive protection in a compact form, making it a terrific choice for critical systems where reliability and performance are essential.
